Description

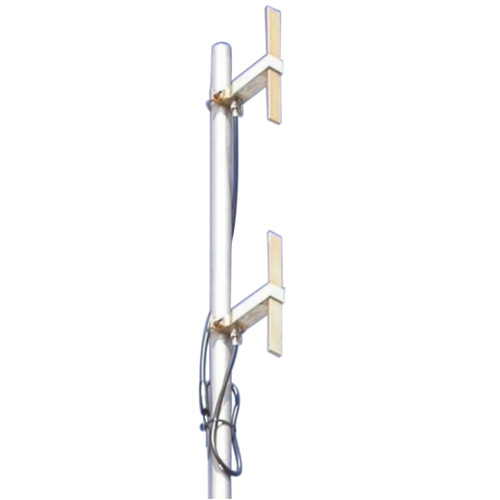

2-Stack UHF Heavy-Duty Dipole Antennas

The HD dual-stack arrays employ center-fed, wideband, half-wave antennas. By stacking the antennas vertically, the width of the vertical beam is decreased while the width of the horizontal beam remains unchanged. This configuration provides a 3dB gain. The system includes an N male connector and a V-plate assembly. These 2-Stack UHF Heavy-Duty Dipole Antennas consist of phasing harnesses and dipoles.

Support poles are not included and must be ordered separately. An additional phasing harness could also be ordered to allow the dipole radiation pattern to tilt downwards by up to six degrees (6º) if needed.
