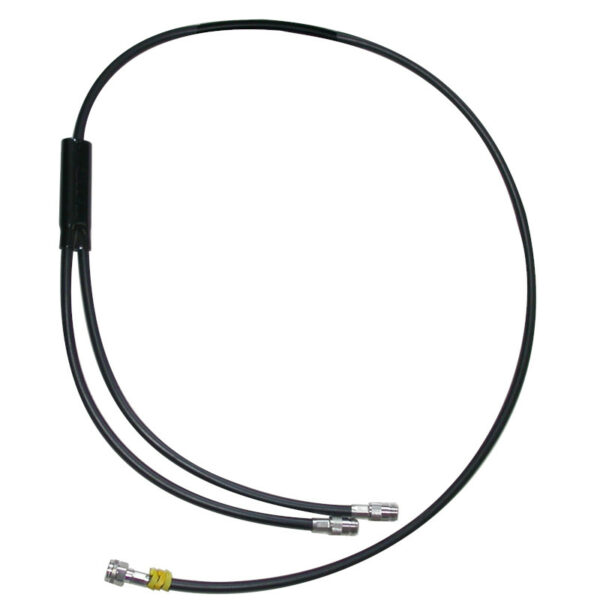

2-Stack UHF Phasing Harnesses

two-stack harness

2-Stack UHF Phasing Harnesses

R3,864.00R3,910.00 incl VAT

Out of stock
0 out of 5

R3,864.00R3,910.00 incl VAT

2-stack UHF Harness

Compare products Compare products


2-Stack UHF Phasing Harnesses

Two-Stack UHF Phasing Harnesses harnesses are used to couple two antennas together so they are fed in phase, keeping a low SWR and minimum insertion loss.
Higher gain or a special shape radiation pattern is achieved.
When the number of antennas in a collinear array is doubled, the gain increases by about three decibels (3 dB).
The branches of the harness are impedance-transforming sections and must not be shortened.
Extra jumper cable sections are necessary to reach each antenna. Such sections must be made precisely equal in length so that the antennas are fed in phase.
The branches are terminated with type N-female connectors and the feeder end with type N-female connectors. N(m-2.f)
The 2-Stack UHF Phasing Harnessesare fully waterproof.

Additional information

Weight N/A
Dimensions N/A
Part Number

MT2/420C, MT2/460C

Band Selector

Additional Band Option

, ,
