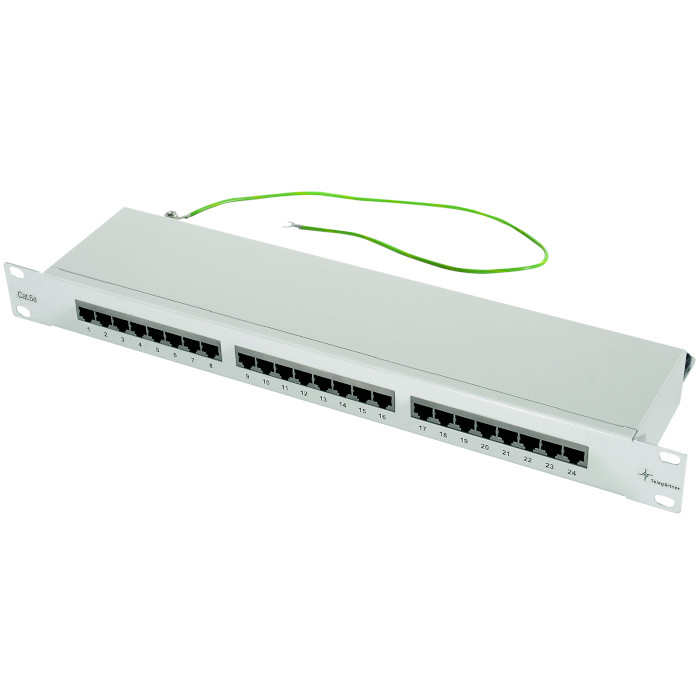

24 Port Cat 5E MPP Patch Panel Grey 7035 Unscreened

24 Port Cat 5E MPP Patch Panel Grey 7035 Unscreened

In stock
0 out of 5

Patch Panel MPP24-H Cat.5e

Availability: 23 in stock SKU: CDV7J02023B0018 Categories: , Brand:
Compare products Compare products


Performance Characteristics:
19″/10″ rack mount unit 1 HU with 12, 16 or 24 RJ45 jacks assembled on one common PCB, 360° shielding can be connected directly on the PCB on a large contact spot using screw clamps, without need of twisting the shielding braid (shielded type), cables are terminated via IDC (LSA Plus) terminals with colour coding acc. to EIA/TIA 568 A and B, limit of 13 mm max. of untwisted length of wires can be easily achieved without restricting an easy installation, risk of short-circuit between screening braid andwires is minimized due to sufficient space between data terminals and screening contact, Cat.6A (ISO/IEC), Class EA (ISO/IEC) 500 & Cat.6A types with overbending protection: >750 mating cylces with RJ45/RJ11/RJ12 plugs, modular jacks are numbered on the front panel, housing is made of steel and powder-laminated in light Grey (RAL 7035) or Black; the cover is made of stainless steel, enclosed cable ties for strain relief of the cables without need of screws and special tools, printed circuit board is mounted horizontally, bonding with the enclosed bonding kit (shielded types), no special tooling required for mounting of cover (shielded type)

Type: 24 x RJ45 unshielded, without cover
Colour: light Grey RAL 7035
Short name: 19″ Patch Panel MPP24-H Cat.5e

Order no. J02023B0018
