24 Port Cat6A ISO 500MHHZ STP Patch Panel

24 Port Cat6A ISO 500MHHZ STP Patch Panel

In stock
0 out of 5

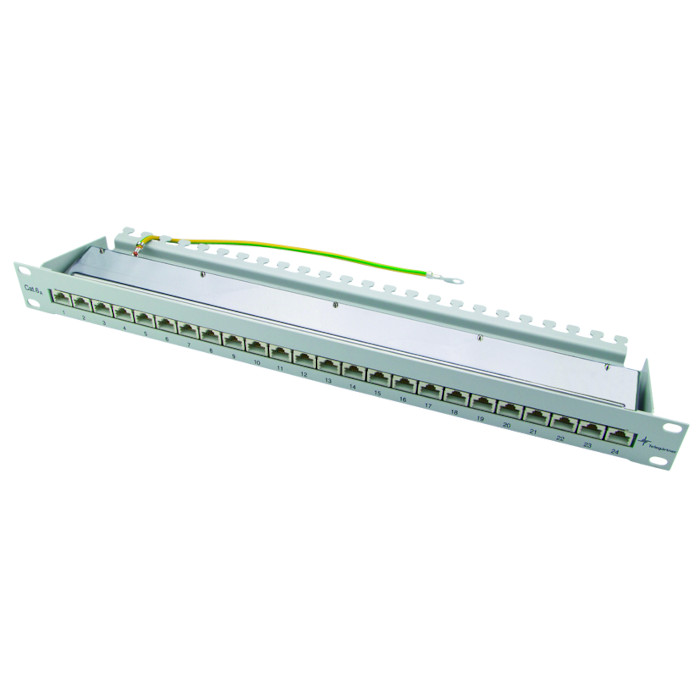

19″ Patch Panel MPP24-HS K Cat.6A(IEC) Shielded, Black

Availability: 85 in stock SKU: CDV7J02023S0050 Categories: , Brand:
Compare products Compare products

Description

Performance Characteristics:
19″/10″ rack mount unit 1 HU with 12, 16 or 24 RJ45 jacks assembled on one common PCB, 360° shielding can be connected directly on the PCB on a large contact spot using screw clamps, without need of twisting the shielding braid (shielded type), cables are terminated via IDC (LSA Plus) terminals with colour coding acc. to EIA/TIA 568 A and B, limit of 13 mm max. of untwisted length of wires can be easily achieved without restricting an easy installation, risk of short-circuit between screening braid andwires is minimized due to sufficient space between data terminals and screening contact, Cat.6A (ISO/IEC), Class EA (ISO/IEC) 500 & Cat.6A types with overbending protection: >750 mating cylces with RJ45/RJ11/RJ12 plugs, modular jacks are numbered on the front panel, housing is made of steel and powder-laminated in light Grey (RAL 7035) or Black; the cover is made of stainless steel, enclosed cable ties for strain relief of the cables without need of screws and special tools, printed circuit board is mounted horizontally, bonding with the enclosed bonding kit (shielded types), no special tooling required for mounting of cover (shielded type)

Type: 24 x RJ45 shielded
Colour: Black
Short name: MPP24-HS K Cat.6A (ISO/IEC)

Training video: Assembly MPP24 Cat.6A , 19″ Patch Panel with 24 Ports

Order no. J02023S0050

Additional information

Weight 2.196 kg
Dimensions 54.5 × 39.5 × 31 cm
Part Number

BLACK
