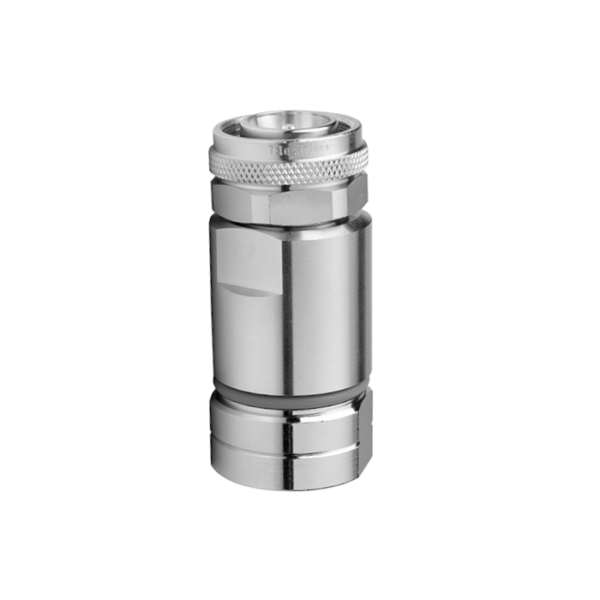

4.3-10 Plug IP68 1/2″ HF 5092

Description

The compact, installation-friendly 4.3-10 RF connectors have been specially developed to meet the ever-increasing demands in mobile radio communication applications. These connectors’ small size and low weight do justice to the miniaturisation of mobile radio network components. Despite their size, the connectors guarantee excellent return loss and passive intermodulation performance (PIM). In addition, the new connector series is very variable since one universal cable jack is suitable for mating with 3 different cable plug designs. All of the 4.3-10 connectors meet the requirements of IP68 and, because of the excellent properties of materials used, are suitable for temperatures ranging from -40° C up to +85° C. Customised connector designs for use at higher temperatures are also possible on demand.

Remarks: SIMFix® Pro, clamp/clamp, IP68
Assembly: B89
Cable group; cable: G23 (1/2″ Flex)
Type: Push Pull Type
G23: 5092 1/2″-Hiflex, FSJ4-50B, Flexline 1/2″ S, HFSC 12D, HPL 50-1/2SF, RFF 1/2″-50, SCF 12-50 J RFS, Sucofeed 1/2 HF
