4.3-10 Square Flange Solder UT141

4.3-10 panel jack RF connector

4.3-10 Square Flange Solder UT141

R891.25 incl VAT

In stock
0 out of 5

R891.25 incl VAT

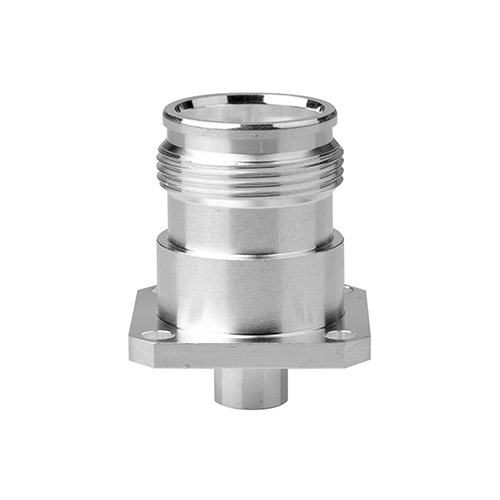

4.3-10 Panel Jack RF Connector, solder/solder, G10 (UT-141)

Availability: 47 in stock SKU: CNC7J01441A0003 Categories: , , Tag: Brand:
Compare products Compare products

Description

4.3-10 panel jack RF Connector, solder/solder, G10 (UT-141)

The compact, installation-friendly 4.3-10 RF connectors have been specially developed to meet increasing demands in mobile radio communication applications. The small size and low weight of these connectors do justice to the miniaturisation of mobile radio network components. The connectors guarantee excellent return loss and passive intermodulation performance (PIM) levels. In addition, the new connector series is very variable, since one universal cable jack is suitable for mating with 3 different cable plug designs. All of the 4.3-10 connectors meet the requirements of IP68 and, because of the excellent properties of materials used, are suitable for temperatures ranging from -40° C up to +85° C. Customised connector designs for use at higher temperatures are also possible on demand.

Remarks: solder/solder
Assembly: E05
Cable group; cable: G10 (UT-141)
Mount. dim.: Z151
G10: EZ 141, 1673A, RG-402/U, SUCOFORM 141, UT-141, Flexiform 402

100025261 >

( Old item number J01441A0003)



Additional information

Weight 0.0454 kg
Dimensions 12 × 10 × 3.6 cm
