5/8 Wave Ground Plane Antennas 3 dB
R4,335.50 – R5,175.00 incl VAT

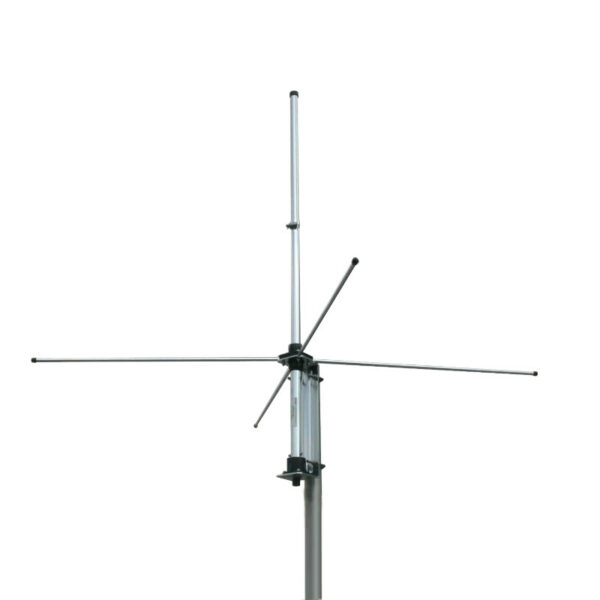

The PDB…5/8 range of antennas are end-fed, 5/8 wavelength, ground plane base antennas.
Omnidirectional, vertically polarised, with low VSWR ensured by using a matching transformer, which also serves as a DC ground.
UHF(f)
- Description
- Additional information
Description
5/8-Wave Ground Plane Antennas 3 dB
PDB 5/8
The PDB 5/8 antennas are a series of ground plane base antennas that operate on a 5/8 wavelength. These antennas are designed to be omnidirectional and vertically polarized, ensuring a wide coverage area. A matching transformer is incorporated to maintain a low VSWR (Voltage Standing Wave Ratio), which also acts as a DC ground. The termination point for these antennas is a UHF Female connector.
Additional information
| Weight | 3.4 kg |
|---|---|
| Dimensions | 180 × 13 × 12 cm |
| Part Number | BJPDB6058 |
| Band Selector | |
| Additional Band Option | |
| Frequency | |
| Nominal Gain |
