Description
Remarks: IP68

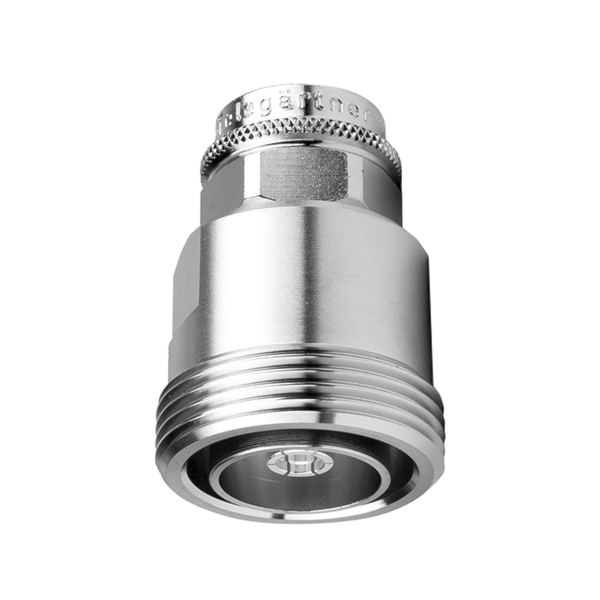

Type: 7-16 (f) / N (m)
Max. Frequency: 8 GHz
Return Loss: typ.: 1 GHz: -40 dB; 4 GHz: -34 dB; 6 GHz: -30 dB
Life: ≥ 500
Passive Intermodulation: typ.: -164 dBm 2×20 W 2,2 GHz
100024539 >
( Old item number J01122C0011)
Additional information
Weight | 0.102 kg |
---|---|
Dimensions | 12 × 10 × 3.6 cm |
Part Number | J01122C0011 |
