Adaptor Straight SMA Plug-Jack

SMA Adaptor / Port Saver, 50 Ohm; (m-f)

Adaptor Straight SMA Plug-Jack

R633.65 incl VAT

In stock
0 out of 5

R633.65 incl VAT

SMA Adaptor / Port Saver, 50 Ohm, (m-f)

Availability: 17 in stock SKU: CNC7J01154A0061 Categories: , , Brand:
Compare products Compare products

Description

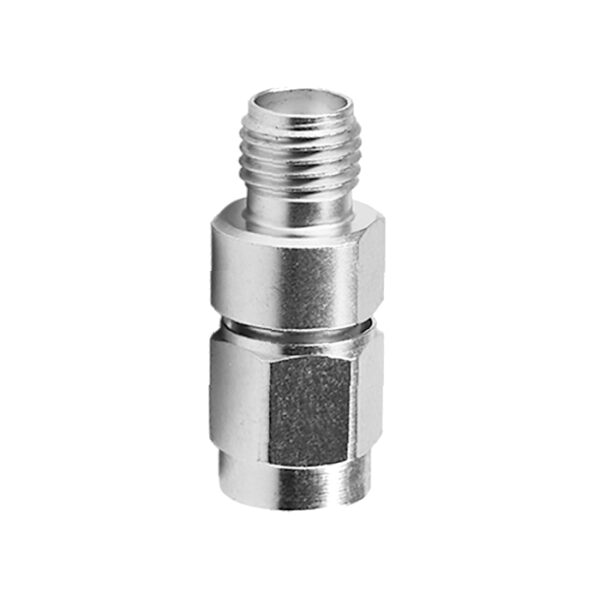

SMA Plug-Jack Adaptor / Port Saver, 50 Ohm

Telegärtner has extended its portfolio with high-quality precision adaptors, which, depending on the type, can be used in frequency bands up to 40 GHz. They can be used on almost all measuring equipment. All precision adaptors have excellent RF properties and thanks to a stainless steel body, a high number of mating cycles.

Remarks: brass gold plated
Type: m-f
Max. Frequency: 18 GHz
Return Loss: 1 GHz: -40 dB; 3 GHz: -28 dB; 6 GHz: -25 dB, 18 GHz: -22 dB

100024795 >
( Old item number J01154A0061)

Additional information

Weight 0.00715 kg
Dimensions 12 × 10 × 2 cm
