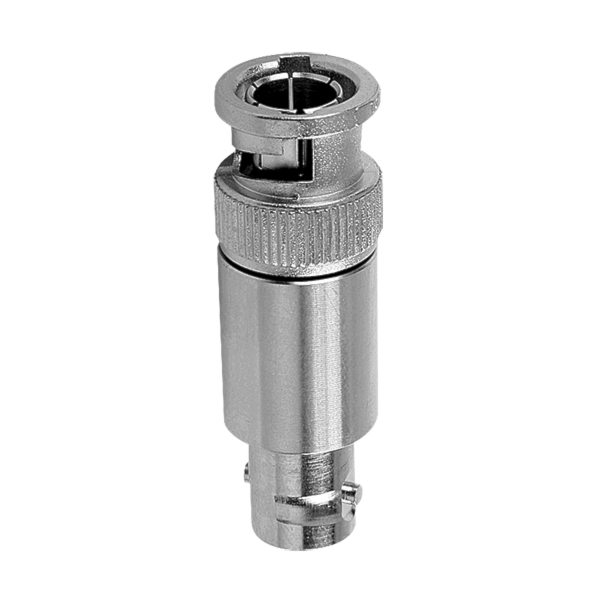

Attenuator BNC Plug-Jack 10dB 6 GHz 2W

Description

BNC Attenuator, m-f, 1W 6GHz 3dB 50 Ohm

The Telegärtner TestLine attenuators are used to weaken RF signals. Up to a frequency of 6 GHz, a precise signal attenuation of 3, 6, 10 or 20 dB depending on type is achieved. Application fields for attenuators in test and measurement are where the RF performance needs to be set at certain levels.

Impedance: 50 Ohm
Type: m-f
Max. Frequency: 6 GHz
Max. Power: 2 W
Return Loss: typ.: 1 GHz: -40 dB; 4 GHz: -30 dB; 6 GHz: -21 dB
Attenuation: 10 dB

100023618 >
( Old item number J01006A0022)
