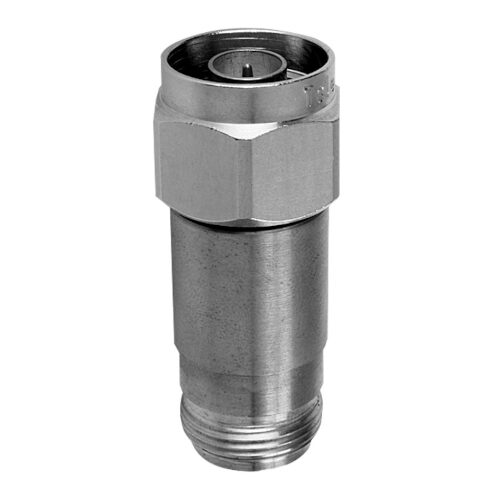

N-type Male to Female Attenuator
N-type Male to Female Attenuator
J01026A0018-21
N-type Male to Female Attenuator

Attenuator N Plug-Jack 10dB 10 GHz 2W

N-type Male to Female Attenuator

Attenuator N Plug-Jack 10dB 10 GHz 2W

R4,738.00 incl VAT

In stock
0 out of 5

R4,738.00 incl VAT

N Attenuator, m-f, 10 dB, 2 W, 10 GHz, inner conductor gold Plated

Availability: 12 in stock SKU: CNC7J01026A0020 Categories: , , Brand:
Add to wishlist
Compare products

Description

The Telegärtner TestLine attenuators are used to weaken RF signals. Up to a frequency of 6 GHz, a precise signal attenuation of 3, 6, 10 or 20 dB depending on type is achieved. Application fields for attenuators in test and measurement are where the RF performance needs to be set at certain levels.

Remarks: inner conductor gold plated
Type: m-f
Max. Frequency: 10 GHz
Max. Power: 2 W
Return Loss: 1 GHz 40 dB; 4 GHz: -32 dB; 10 GHz: -20 dB
Attenuation: 10 dB

Additional information

Weight 0.0665 kg
Dimensions 12 × 10 × 3.6 cm
