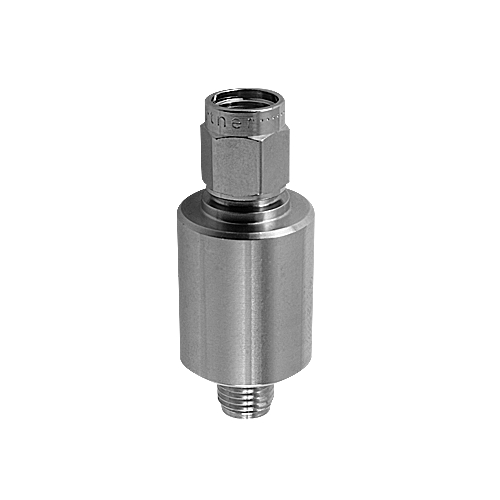

Attenuator SMA Plug-Jack 3dB 10 GHz 2W

Description

SMA Plug-Jack Attenuator; 3 dB; 2 W; 10 GHz

The Telegärtner TestLine attenuators are used to weaken RF signals. Up to a frequency of 6 GHz, a precise signal attenuation of 3, 6, 10 or 20 dB depending on type is achieved. Application fields for attenuators in test and measurement are where the RF performance needs to be set at certain levels.

Type: m-f
Max. Frequency: 10 GHz
Max. Power: 2 W
Return Loss: 1 GHz: -40 dB; 4 GHz: -35 dB; 10 GHz: -19 dB
Attenuation: 3 dB

100024828 >
( Old item number J01156A0011)
