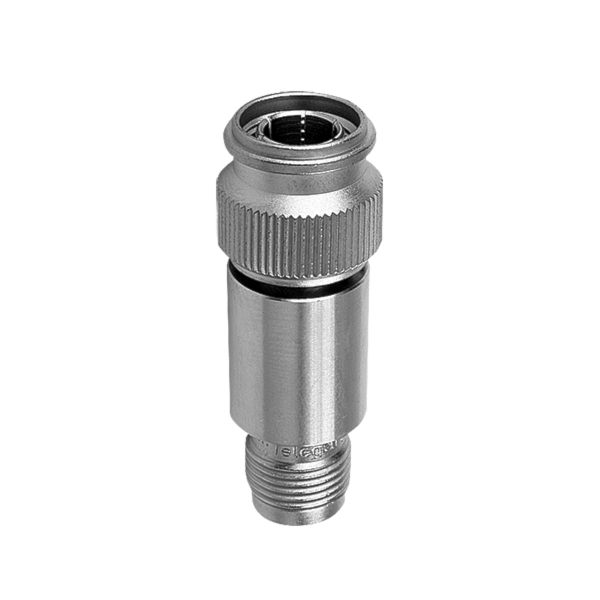

TNC Attenuator; m-f; 20 dB; 2 W; 10 GHz
csm_J01016A0004_c787fdf95d

Attenuator TNC Plug-Jack 20dB 10GH 2W

TNC Attenuator; m-f; 20 dB; 2 W; 10 GHz

Attenuator TNC Plug-Jack 20dB 10GH 2W

R3,928.40 incl VAT

Out of stock
0 out of 5

R3,928.40 incl VAT

TNC Attenuator, m-f, 20 dB, 2 W, 10 GHz

Availability: Out of stock SKU: CNC7J01016A0007 Categories: , , Brand:
Compare products
Add to wishlist
Compare products

Description

TNC Attenuator Plug-Jack 20 dB 2 W 10 GHz

Downloads

The Telegärtner TestLine attenuators are used to weaken RF signals. Up to a frequency of 6 GHz, a precise signal attenuation of 3, 6, 10 or 20 dB depending on type is achieved. Application fields for attenuators in test and measurement are where the RF performance needs to be set at certain levels.

Remarks: Inner conductor gold plated
Impedance: 50 Ohm
Type: m-f
Max. Frequency: 10 GHz
Max. Power: 2 W
Return Loss: typ.: 1 GHz: -40 dB; 4 GHz: -22 dB; 6 GHz: -18 dB
Attenuation: 20 dB

100023844 >
( Old item number J01016A0007)

Additional information

Weight 0.0305 kg
Dimensions 12 × 10 × 2 cm
