Description

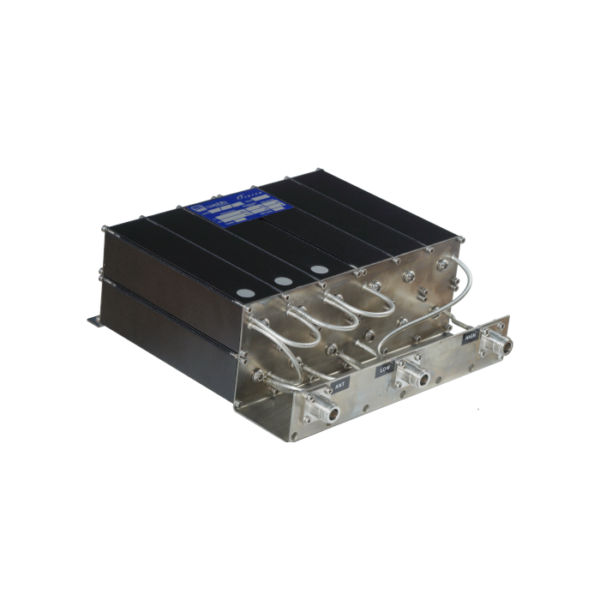

The UHF Band-Pass Duplexer BPD400/12 isolates the receiver from its associated transmitter and provides adequate isolation from nearby transmitters in the area.
The isolation of better than 70 dB can be achieved due to the 12 cavity resonators of the duplexer.
The BPD 400-12 has a pass band of 2,5 MHz
The 12 resonators of the duplexer are silver plated to improve temperature compensation.
Additional information
| Weight | 3.7 kg |
|---|---|
| Dimensions | 26 × 23 × 10 cm |
| Part Number | DJBPD40012 |
| Band Selector | |
| Additional Band Option | |
| Frequency | |
| Frequency Spacing | |
| Input Power | |
| Insertion Loss | |
| Isolation | |
| VSWR | |
| Impedance | |
| Termination |
