Blackjack 100 Mobile Antenna MK2

Blackjack 100, snap-in, whip

Blackjack 100 Mobile Antenna MK2

R678.50 incl VAT

In stock
0 out of 5

R678.50 incl VAT

Black base 1/4 wave 108-470MHz

Compare products

Description

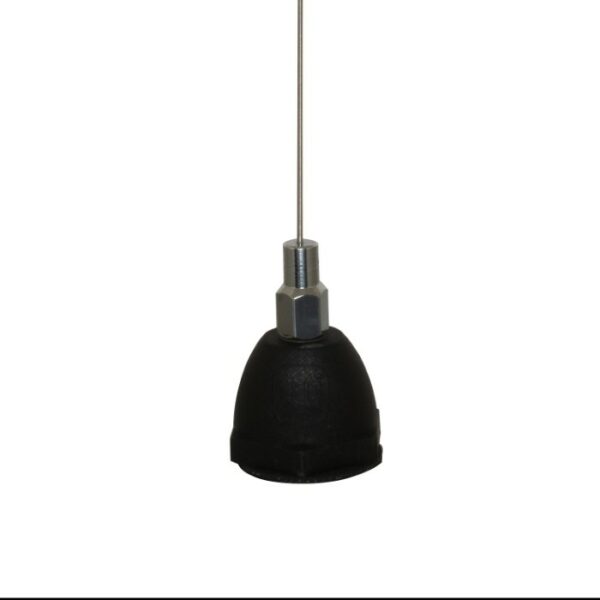

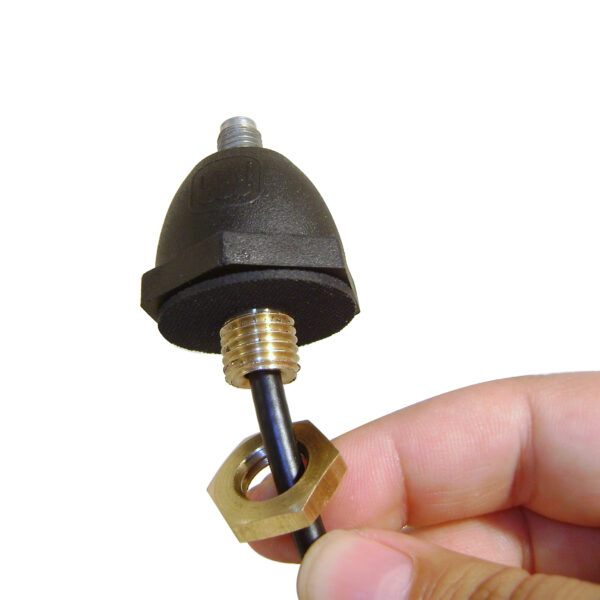

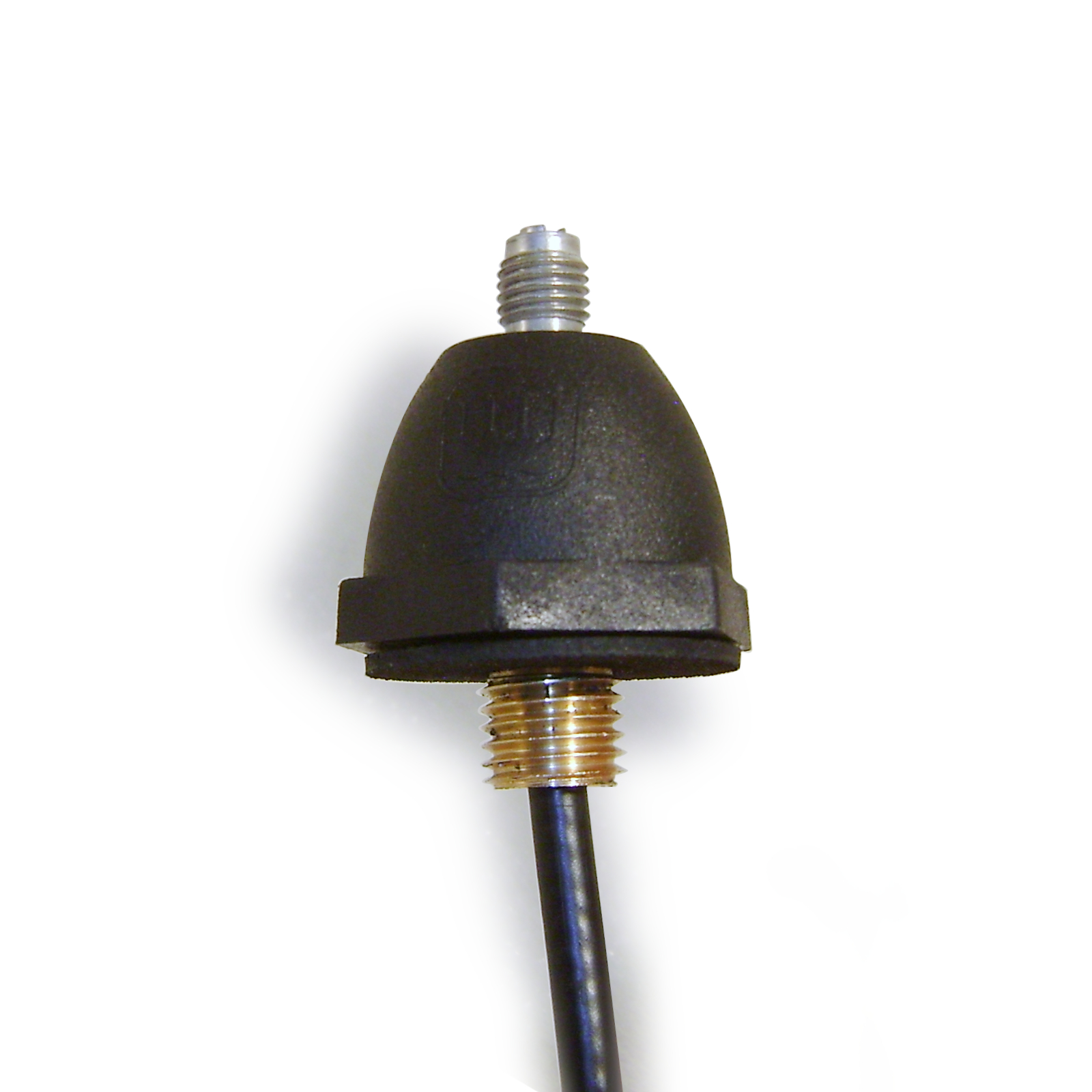

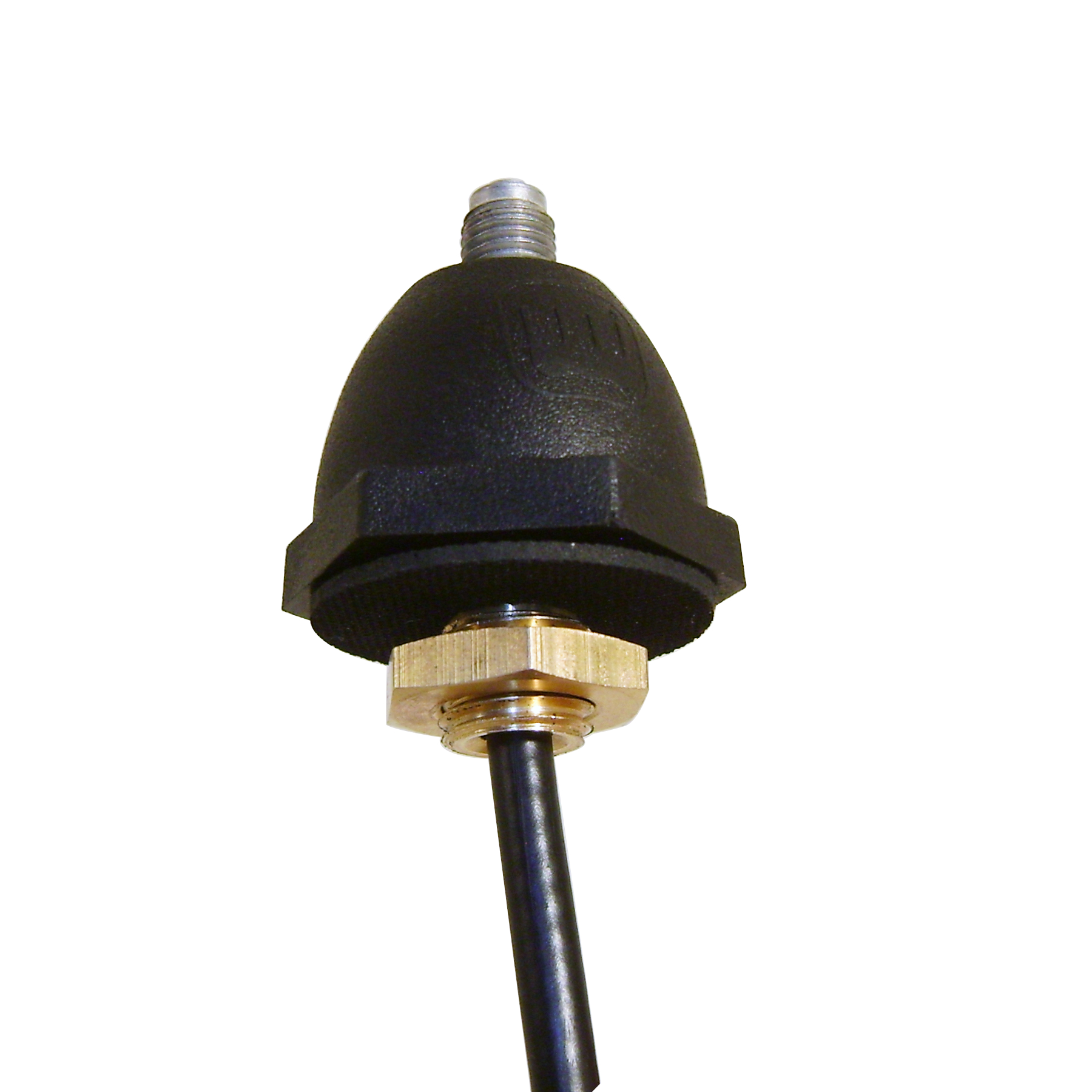

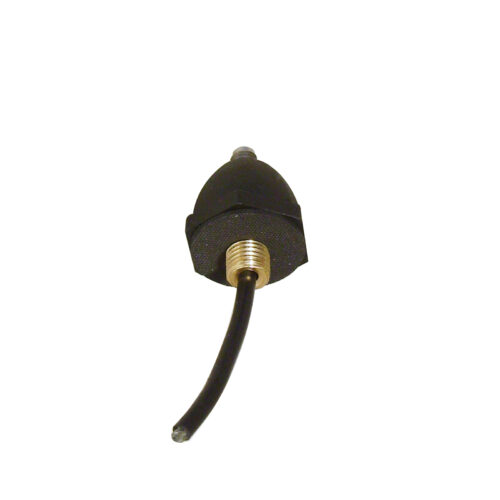

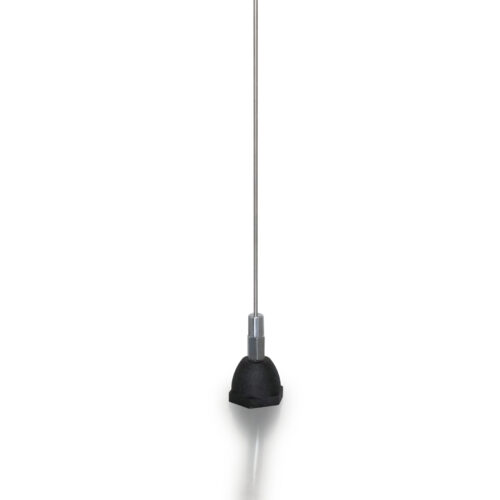

The Blackjack 100 Mobile Antenna is a quarter-wave snap-in antenna designed for mounting from the outside of the vehicle body. It can be tuned between a frequency range of 108 MHz to 470 MHz.

The antenna is not supplied with a cable or a connector; therefore, it must be ordered separately.

The antenna has the following specifications: VSWR of < 1.5:1 across a bandwidth of 2 MHz to 9 MHz with a nominal gain of 0 dBq (relative to a quarter wavelength radiator) and a rated power of 50 W. It has a characteristic impedance of 50 Ohm.

The Blackjack 100 Mobile Antenna can withstand wind velocities up to 220 km/h.  The whip is designed to be flexible and does not break easily. It can be mounted on vehicles and structures. The whip is less than 1.5 meters long and weighs around 300 grams.

The whip is made of stainless steel grade 17 – 7 PH and has a mounting hole size of 9.5 mm. The antenna can radiate all its power in equal directions perpendicular to its axis. The antenna is only available in silver and black.

The antenna’s electric field is vertical, while the magnetic field is horizontal. Replacement parts such as bases and whips are available upon request. When the antenna is mounted on a vehicle, it is recommended to remove it before using equipment such as automatic car wash equipment to avoid damage to the antenna.

BlackJack MK2 installation instructions are valid from March 2023.

Additional information

Weight 0.3 kg
Dimensions 4 × 11 × 140 cm
Part Number

MJBLACKJACK100

Band Selector

,

Additional Band Option

, , ,

Frequency

, , , , , ,

Nominal Gain
