BNC Plug Crimp LMR240-75

BNC Male

BNC Plug Crimp LMR240-75

R239.20 incl VAT

In stock
0 out of 5

R239.20 incl VAT

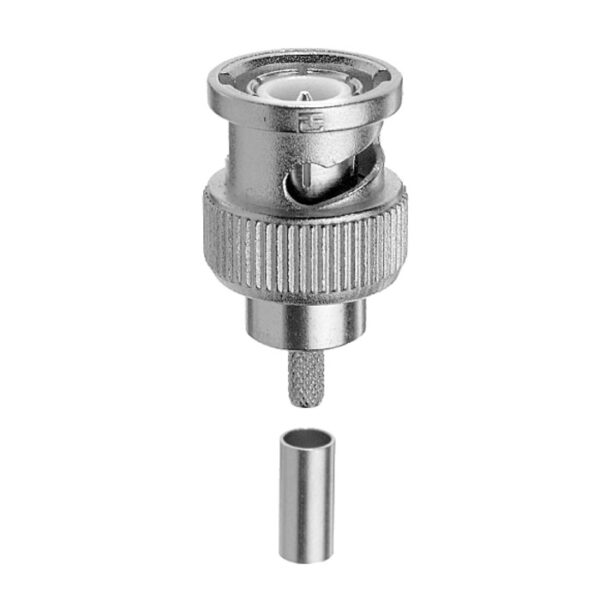

BNC Straight Plug HDTV Crimp 75 Ohm G39 (0.8/3.7-6.15)

Availability: 27 in stock SKU: CNC7J01002A0055 Categories: , , , Brand:
Compare products Compare products

Description

The so-called High Definition Television (HDTV) places far higher electrical demands on the 75 Ohm BNC- and F-connectors commonly used, in order to improve the system Return Loss performance and, therefore, the signal reflection, up to a frequency of 3 GHz. For this reason, Telegärtner has specially developed a new series of 75 Ohm BNC- and F-connectors with extremely high impedance matching, resulting in excellent Return Loss values (typically -30 dB min up to 3 GHz). Unlike standard F-connectors, all the Telegärtner designs include a centre contact.

Remarks: crimp/crimp, HDTV, 3 GHz: ≥ -30 dB; Professional
Assembly: A4231
Z: 75 Ω
Dimensions: a=31, b=31
Crimp die: N01003A0056
Cable group; cable: G39 (0.8/3.7-6.15)
G39: 0.8/3.7 AF, 0.8/3.7C, 1505A HDTV, Image 720, TELASS 80, VK6/0.8 FRLS 0.8/3.7, 1505A, VPM2000

Additional information

Weight 0.065 kg
Dimensions 12 × 10 × 2 cm
Part Number

BELDEN1505
