Cat6A Shielded Module AMJ-S T568B (Slim Design)

Description

Performance Characteristics:
Cat.6A (ISO/IEC) acc. to IEC 60603-7-51, Cat.6A (ISO/IEC) re-embedded tested acc. to IEC 60512-27-100, link certificate: Class EA (ISO/IEC) acc. to ISO/IEC 11801, 10 Gigabit-Ethernet compliant (IEEE 802.3an), overbending protection: ≥750 mating cycles with RJ45/RJ11/RJ12 plugs, suitable for PoE+ acc. to IEEE 802.3at, suitable for switching programs from several manufacturers with design capable faceplate AMJ-S Up/0 flex, integrated strain relief for cable O.D. to 9 mm, universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm, universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm, AMJ-S DD: with integrated protection against damage to the contacts by automatic disconnection of the plug connection

Remarks: tool-free connectivity, suitable for RJ45/11/12 plugs

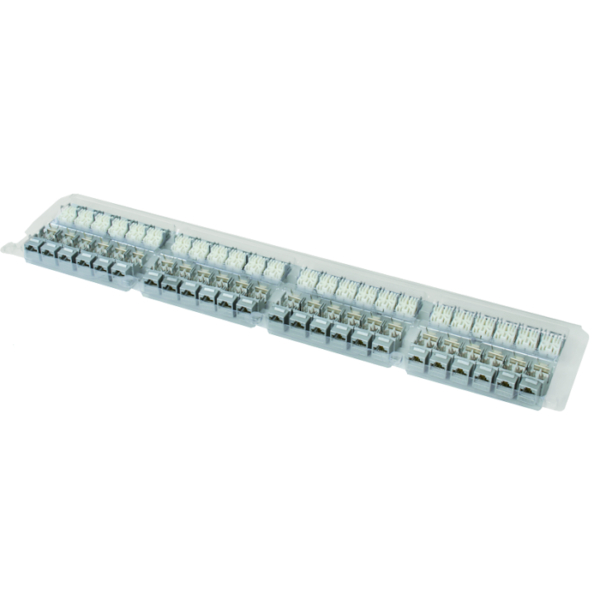

Type: blister package (24 pcs.)
Short name: AMJ-S Module Cat.6A (ISO/IEC) T568B
Mount. dim.: Z121
