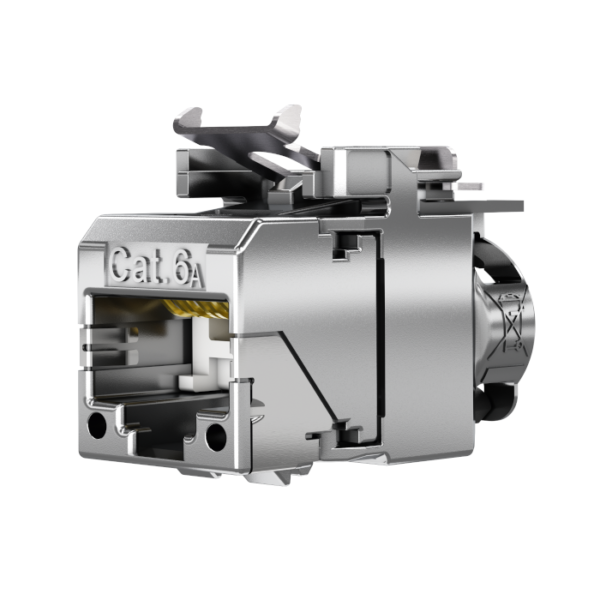

Cat6A Shielded Module AMJ-SL T568B (Slim / Short Design)

Description

Performance Characteristics:
Cat.6A (ISO/IEC) acc. to IEC 60603-7-51, Cat.6A (ISO/IEC) re-embedded tested acc. to IEC 60512-27-100, link certificate: Class EA (ISO/IEC) acc. to ISO/IEC 11801, 10 Gigabit-Ethernet compliant (IEEE 802.3an), overbending protection: ≥750 mating cycles with RJ45/RJ11/RJ12 plugs, suitable for PoE+ acc. to IEEE 802.3at, suitable for switching programs from several manufacturers with design capable faceplate AMJ-S Up/0 flex, integrated strain relief for cable O.D. to 9 mm, universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm, universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm, AMJ-S DD: with integrated protection against damage to the contacts by automatic disconnection of the plug connection

Remarks: tool-free connectivity, suitable for RJ45/11/12 plugs
Type: package of 12
Short name: AMJ-SL Module Cat.6A, T568B
Feature & Benefits: Very short length, only 32 mm, Made in Stuttgart, PVP certification, Safe Lock, Type Approval Component Category 6A (ISO/IEC), certified by GHMT; electrical performance characteristics above standard certainty for planning purposes, Refined zinc die cast housing and metallic stop hook provide 360°-shielding, Captive cable relief, Compatible with all switching programs, Carton packaging, Detailed assembly instruction and assembly video available, via QR-Code always and everywhere, easy & fast assembly withou special tools
