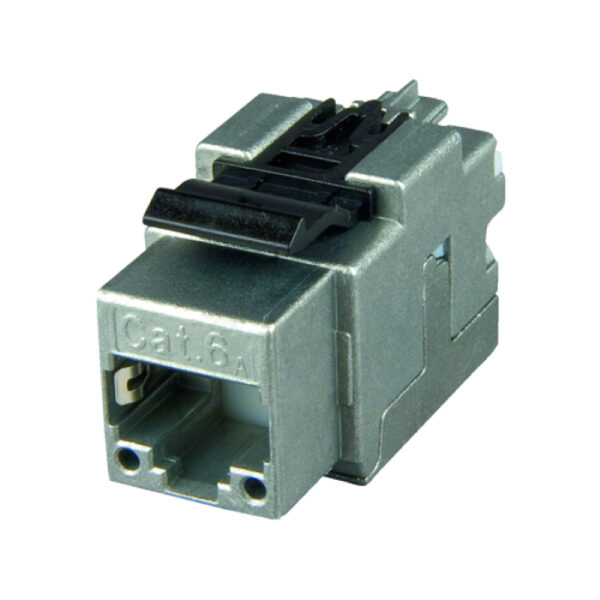

Cat6A Shielded Module AMJ T568B

Description

Performance Characteristics:
10 Gigabit-Ethernet compliant (IEEE 802.3an), Cat.6A (ISO/IEC) acc. to IEC 60603-7-51, suitable for POE+ (Power Over Ethernet Plus), overbending protection: ≥750 mating cycles with RJ45/RJ11/RJ12 plugs, link certificate: Class EA (ISO/IEC) acc. to ISO/IEC 11801, universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm, universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm, fully-automated production of Cat.6A (ISO/IEC) RJ45 core to guarantee a uniformly high quality standard

Remarks: tool-free connectivity, suitable for RJ45/11/12 plugs
Short name: AMJ Module K Cat.6A (ISO/IEC) T568B
Mount. dim.: Z121
