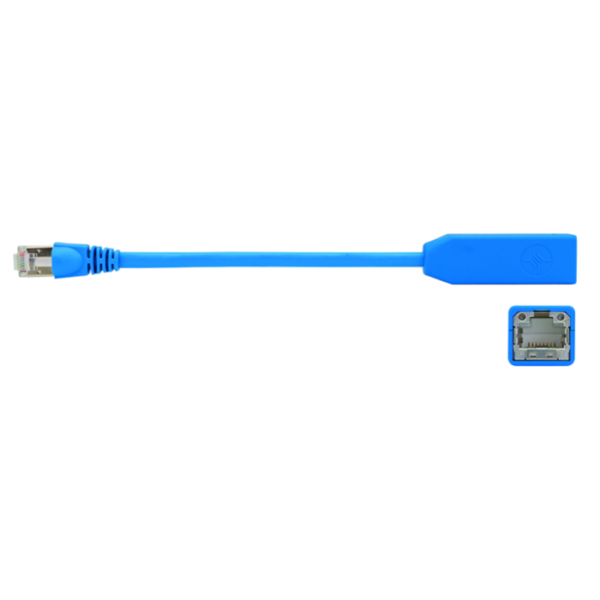

The DDCP-Link offers users and network administrators an easy way to protect expensive and mobile IT equipment with LAN access from damage. If the mobile IT equipment is moved in a bigger radius than the connected RJ45 cable allows, the DDCP-Link disconnects the connection when a certain pull-out force is reached. This prevents damage of the expensive boards of the IT equipment such as damaged contacts or complete loss of RJ45 jacks for the network connection. Therefore, an expensive repair is a thing of the past. The connection between RJ45 trunk and DDCP-Link disconnects first because the pull-out force is designed to be lower than the standardized specification for RJ45 plugs and jacks according to IEC 60603-7. Nevertheless the DDCP offers enough insertion and pull-out force to prevent an accidental release of the connection under small pull-out forces. The DDCP can be integrated into existing structures with little effort, for example, if it is connected between telecommunication outlets, connection cable and in front of active devices.
High Power over Ethernet plus (PoE+) acc. to IEEE 802.3at, Cable: S/FTP 4x2xAWG27/7 Cat.7 LSZH, Outer diameter of cable: 5.8 mm (+/- 0.2 mm), Life: â‰¥ 750 mating cycles, Connection diagram 1:1; pin assignment T568B, Protected release latch by means of moulded RJ45 Boot, Plug & Jack: IEC 60603-7-51 compliant, Temperature range: -40Â° C to 70Â° C, Shielding housing material of jack: diecast nickel-plated zinc, Housing cover material: ABS Blue, Contact finish material: Ni1.2Au0.8
Short name: Defined Disconnect CP-Link
