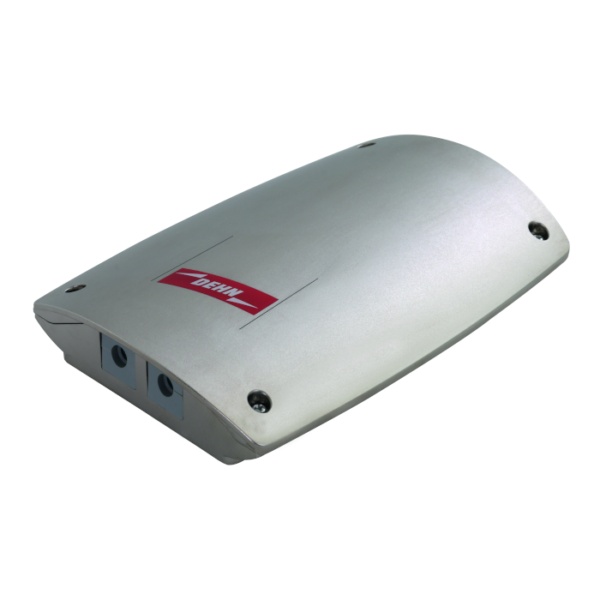

DEHNpatch DPA CLE IP66
DEHNpatch (DPA) Arrester for Data Networks and Ethernet Applications
Universal surge arrester for GBit Ethernet applications, Power over Ethernet (IEEE 802.3 compliant up to PoE++ / 4PPoE) and similar applications in structured cabling systems up to class E in indoor and outdoor areas in an IP66 rated enclosure impervious to dust and water. Protection of all pairs with gas discharge tubes and one adapted filter matrix for each pair. Fully shielded surge protective solution with RJ 45 sockets. Universal mounting bracket for pole and wall mounting.
External accessories: Tensioning straps for pole mounting
- Description
- Additional information
Description
Indoor / outdoor applications (IP 66)
GBit Ethernet applications and structured cabling systems according to class E up to 250 MHz
Power over Ethernet IEEE 802.3 (up to PoE++ / 4PPoE)
For installation in conformity with the lightning protection zone concept at the boundaries from 0B –2 and higher
Additional information
| Weight | 0.61 kg |
|---|---|
| Dimensions | 4 × 12 × 18 cm |
| SPD Type | |
| Current Flow | |
| Data Cable | |
| Operating Voltage | |
| Discharge Current @ 8/20 µs | 0.4 kA nominal line-line, 2.5 kA nominal line-PG, 10 kA total |
