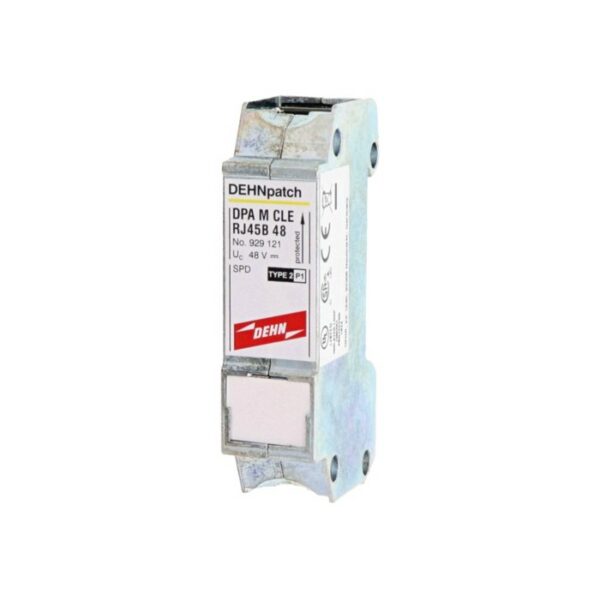

DEHNpatch M CLE RJ45B 48
DEHNpatch (DPA) Arrester for Data Networks and Ethernet Applications
Universal arrester for Industrial Ethernet, Power over Ethernet (IEEE 802.3 compliant up to PoE++ / 4PPoE) and similar applications in structured cabling systems according to class E up to 250 MHz. Protection of all pairs by means of powerful gas discharge tubes and one adapted filter matrix per pair. Fully shielded type with sockets for DIN rail mounting.
- Description
- Additional information
Description
Ideally suited for retrofitting, protection of all lines
Cat. 6 in the channel (class E)
Power over Ethernet IEEE 802.3 compliant (up to PoE++ / 4PPoE)
For installation in conformity with the lightning protection zone concept at the boundaries from 0B –2 and higher
Additional information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 4 × 2 × 8 cm |
| Part Number | 929 121 |
