EliteR 390/2 5/8-Wave Mobile Antenna 380—470 MHz
R1,081.00 incl VAT
5/8 380-470MHz 4dB
- Description
- Additional information
Description

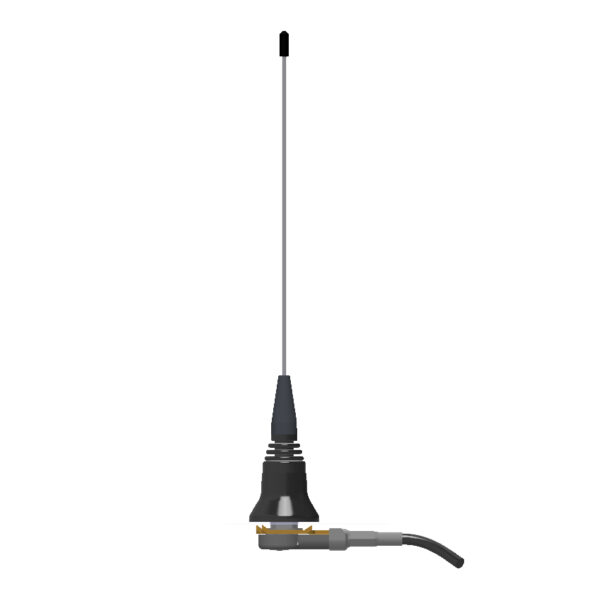

The Elite R3902 Mobile Antenna is a 5/8 wavelength antenna designed for mounting from inside or outside of a vehicle body. It can be tuned between a frequency range of 380 MHz to 470 MHz.
The antenna is supplied with a 6 m RG-58 coaxial cable by default. Other sizes are available on request.
NB: order a coax connector separately since it is not supplied with the antenna.
The EliteR3902 Mobile Antenna has the following specifications: VSWR of < 1.5:1 across a bandwidth of 10 MHz with a nominal gain of 4 dBq (relative to a quarter wavelength radiator) and a rated power of 50 W.
The antenna can withstand wind velocities of up to 220 km/h. The whip is designed to be flexible and does not break easily. It can be mounted on vehicles and structures. The center pin of the antenna is bendable up to 30 degrees.
The whip is made of stainless steel and has a mounting hole size of 12 mm. The antenna can radiate all its power in equal directions perpendicular to its axis. The antenna is only available in color black.
The antenna’s electric field is vertical, while the magnetic field is horizontal. Replacement parts such as bases and whips are available upon request. When the antenna is mounted on a vehicle, it is recommended to remove it before using equipment such as automatic car wash equipment to avoid damage to the antenna.
Additional information
Weight | 0.4 kg |
---|---|
Dimensions | 3 × 11 × 59 cm |
Part Number | MJELITE-R3902 |
Band Selector | |
Additional Band Option | |
Frequency | |
Nominal Gain |
