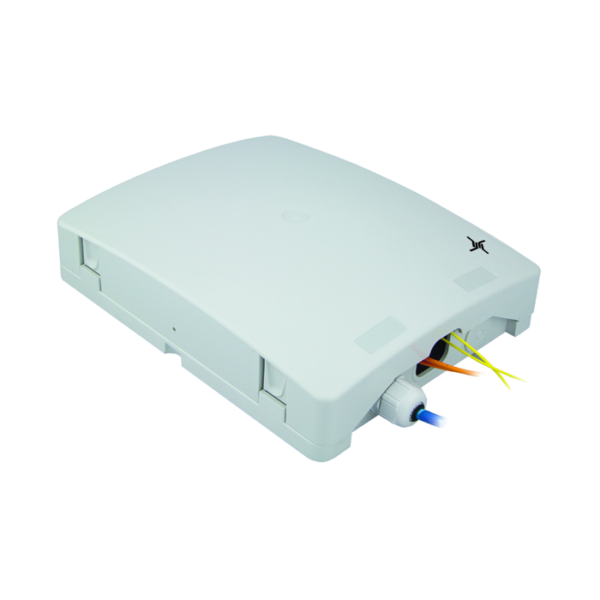

Housing ODB 54 for Splicing of Max. 24 Fibres

Description

The Telegärtner ODB 54 wall distributor enables you to solve various installation demands with one product. Whether it will be used as splice storage or as distributor housing, there is enough space in the rugged plastic ODB 54 housing for accommodating up to 24 glass fiber ports. In Fiber-to-the-Building/-Home Networks, the glass fibers have to be terminated and protected in the customer access area. There is also a demand for the use of different connectors and adaptors or xWDM solutions depending on the customer request. The Telegärtner ODB 54 wall distributor easily meets these requirements.

Performance Characteristics:
Protection class IP54, material: PC, IK 04, locking with 2 snap-fits and optional lead seal, loop storage, please order splice holder separately, Possibility to attach optical function modules, mounting of gas- or waterblocker for blow fiber system (optional), With flexible cable sealing for up to 24 patch cords Ø 1,8 – 2,8 mm

Remarks: for splicing of max. 24 fibers
Dimensions: 250 x 200 x 64 mm
Description: ODB 54 housing
