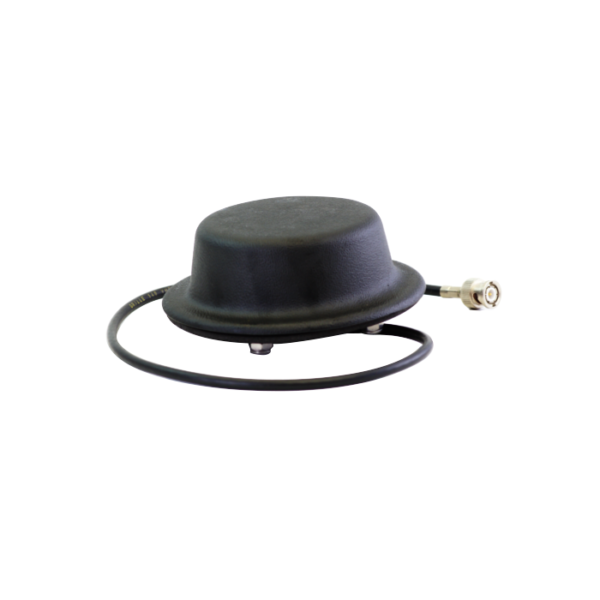

Low Profile Rugged Antenna
The LPA is a rugged, low profile antenna and is designed for use on industrial equipment.
It operates in the UHF Frequency Band.
- Description
- Additional information
Description
The Low Profile Rugged Antenna is designed for industrial equipment and covers the UHF frequency band of 406 MHz to 470 MHz. It has the following specifications: a nominal gain of 2 dBi and a VSWR of < 2:1. It has a rated power of 25 W and a characteristic impedance of 50 Ohm. A BNC male connector is terminated on a 0.5 m RG-58 coaxial cable.
The Low Profile Rugged Antenna can radiate all its power in equal directions perpendicular to its axis. The antenna cover is made from ultraviolet-stabilized acrylonitrile butadiene styrene (ABS). The base plate is made of aluminium, and the radiator is PCB. The antenna is only available in color black.
Additional information
| Band Selector | |
|---|---|
| Additional Band Option | |
| Frequency | |
| Nominal Gain |
