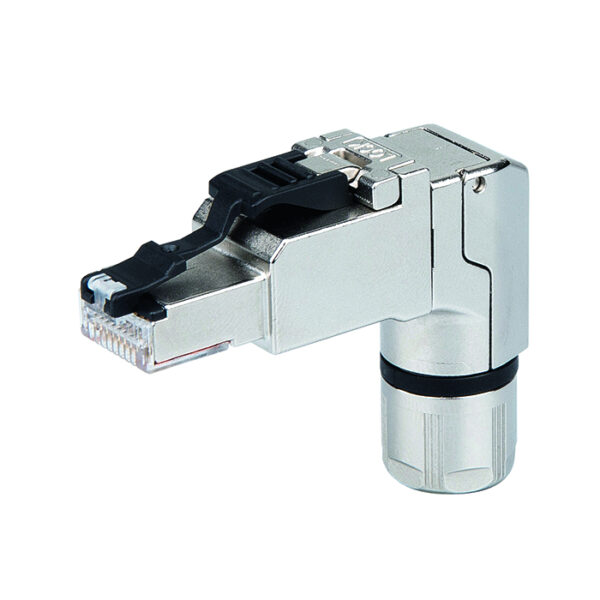

MFP8 90 degree Cat6A Field Term RJ45 Male Connector

Description

Performance Characteristics:
Cu conductor diameter:(J00026A4000, -1, -2, -4110, -4111, -4112)solid 0.51 – 0.64 mm (AWG24/1 – 22/1)stranded 0.46 – 0.76 mm (AWG27/7 – 22/7)stranded 0.61 – 0.78 mm (AWG24/19 – 22/19)* ; core diameter: 1.0 – 1.6 mm, IP20, Outer diameter: 5.5 – 10.0 mm, Cable entry from 4 directions (4×90), Cable strain relief: AF13, Category 6A acc. to ISO/IEC 11801, Life: ≥ 750 mating cycles, PoE+ acc to IEEE 802.3at, Plug: IEC 60603-7-51 compliant, Temperature range: -40°C to 85°C, Shielding housing material: die-cast nickel-plated zinc, Contact finish material: Ni1,2Au0,8, Reusable IDC: ≤ 4 cycles

Remarks: AWG 24/1-22/1, AWG 27/7-22/7, incl. pre-assembled protection cap
Short name: MFP8-4×90 T568B Cat.6A (ISO/IEC)
