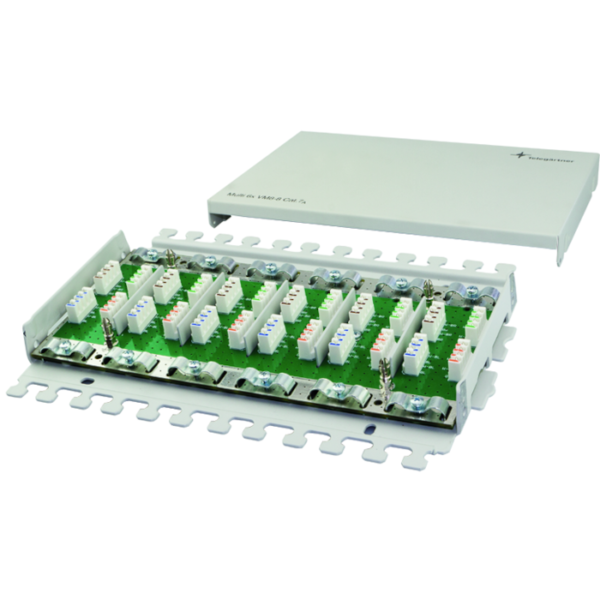

Multi Connection Data Cat7 Consolidation 6Way

Description

Performance Characteristics:
wall housing made of sheet steel, powder-coated, RAL7035 light Grey, a maximum of 6 incoming and 6 outgoing cables, variable cable infeed from above and below / left and right / from the same direction, pairs can be brought directly up to the terminal without untwisting the pairs, secure shielded contact using screw-on terminals directly on the PCB, variable cable feeds, cable strain relief using commercially available cable ties (VM 8-8 Cat.7A (ISO/IEC)), tool-free installation of shielding cover made of stainless steel (19″ and wall mount version), surface mount (AP) type: incoming and outgoing cables in the same direction, surface mount, 19″, and basic (for loose connection) version: incoming and outgoing cables offset by 180 degrees, bonding connection option directly on the PCB (M4 screw), EMC compatible in accordance with DIN EN 61000-6-1 and 61000-6-2, wall housing made of sheet steel, powder-coated, RAL7035 light Grey, a maximum of 6 incoming and 6 outgoing cables, variable cable infeed from above and below / left and right / from the same direction

Remarks: wall box for 6 shielded and unshielded installation cables
Colour: light Grey RAL 7035
Short name: Multi 6x VM 8-8 Cat.7A (ISO/IEC)

Training video: Assembly VM 8-8 Cat.7A , Connection Module

Order no.: J00060B0069 , J00060A0069 , J00060A0071 , J00060A0072
