Description
Assembly: E10

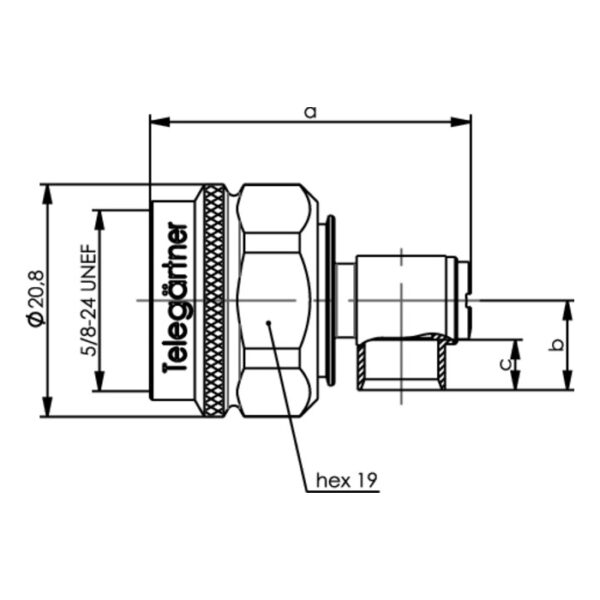

Dimensions: a= 28.7; b=8; c=4.5
Cable group; cable: G9 (UT-250); G20 (1/4″ Flex)
Return Loss: typ.: 1 GHz: -32 dB; 4 GHz: -31 dB; 6 GHz: -25 dB
G9: UT-250, EZ 250, Flexiform 401, RG-401/U, SUCOFORM 250
G20: 5042 1/4″-Hiflex, FSJ1-50, RFF 1/4″-50, SCF 14-50 J RFS
Additional information
Weight | 0.0252 kg |
---|---|
Dimensions | 12 × 10 × 3.6 cm |
