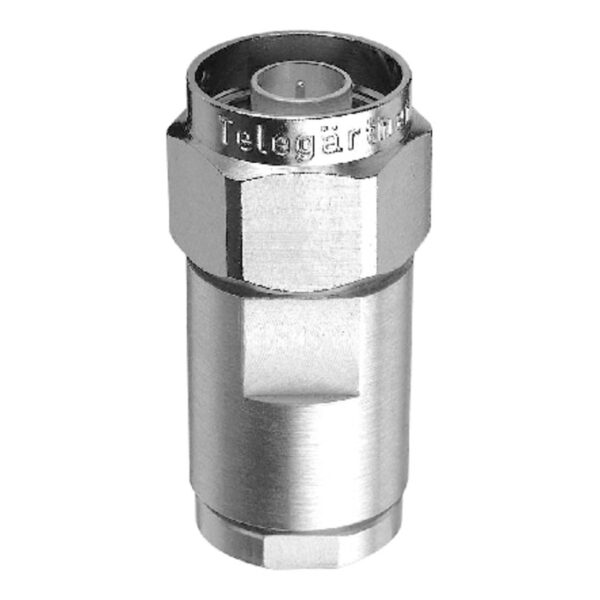

N Plug Clamp LMR400 9913

Description

Remarks: solder/clamp; pressure sleeve IP67
Assembly: B82
Cable group; cable: G37 (2.7/7.25); G42 (2.7/7.1); H500; Aircom Plus
Return Loss: typ.: 1 GHz: -32 dB; 2 GHz: -30 dB; 6 GHz: -28 dB
G37: 2.7/7.3 AF, 2.7/7.3 CF, 213CRT7 LOW LOSS, 7810A, 9913, 9914, C2FCP, C2FP, CNT-400, EC 400, HPF 400, LMR-400, MRC 400 AFB, TZC 500 32, WBC-400, WCX400, SPEEDFOAM 400 HFJ, AIRCOM PREMIUM, RF 400 TT
G42: 02Y(St)C(St)H 2.6/7.3 AF, 213RT5, H 1000, H 2000, RT 50/20
G55: 9913F
null: H 500
