Phantom Covert Tracking Antenna
PHANTOM Antennas are designed to be obscure and covers the GSM frequency bands.
It is hardly visible when mounted on a windscreen or any non-metallic surface.
Define your own termination and coax cable length when ordering.
- Description
- Additional information
Description

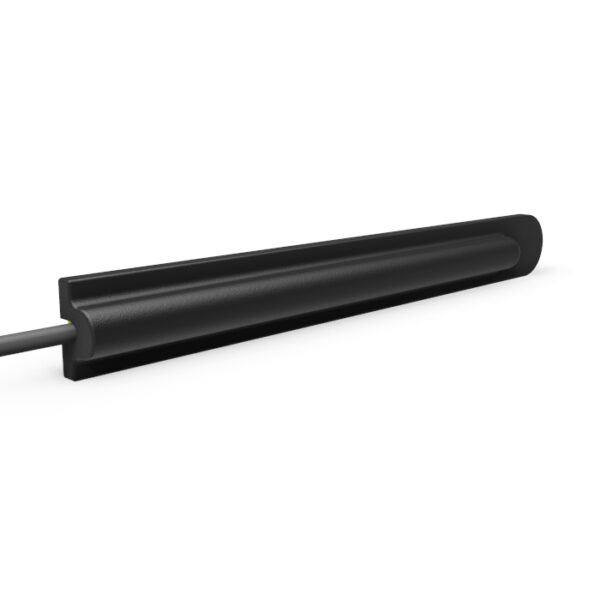

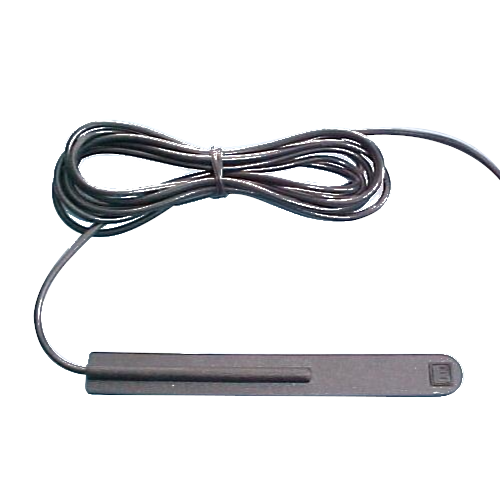

The Phantom Covert Tracking Antenna is designed to be obscure and is hardly visible when mounted on a windscreen or any non-metallic surface. When ordering, choose your termination and coaxial cable length.
The antenna covers the GSM900 band of 870 MHz to 960 MHz, the GSM1800 band of 1710 MHz to 1880 MHz, and the 3G band of 1880 MHz to 2170 MHz.
The Phantom Covert Tracking Antenna has the following specifications: both the GSM and 3G bands have a nominal gain of 2 dBi and a VSWR of < 2:1. It has a rated power of 10 W and a characteristic impedance of 50 Ohm for all the bands that it covers. Choose between coaxial cables of RG-58 and RG-174 that are supplied with the antenna.
The antenna can radiate all its power in equal directions perpendicular to its axis.
It is mounted with double-sided tape. The antenna cover is made from ultraviolet-stabilized acrylonitrile butadiene styrene (ABS). It has a temperature range between -20 degrees Celsius and 60 degrees Celsius. The antenna is only available in color black and weighs less than 100 grams.
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 15 × 4 × 2 cm |
| Part Number | Talk to us |
| Band Selector | |
| Additional Band Option | |
| Frequency | |
| Nominal Gain |
