csm_J01151A1181_4b5913d2ff CNC7J01151A1181

SMA Jack Solder UT141 RG402

SMA Jack Solder UT141 RG402

R365.70 incl VAT

In stock
0 out of 5

R365.70 incl VAT

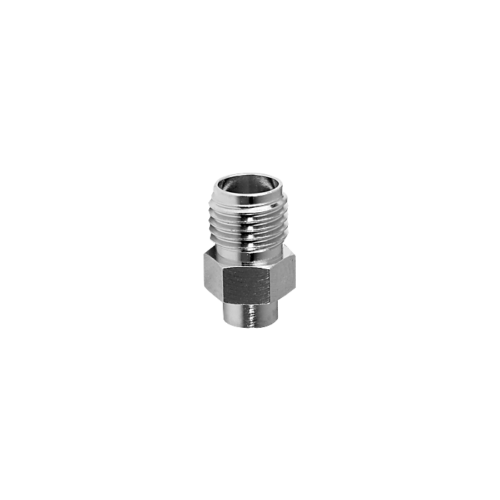

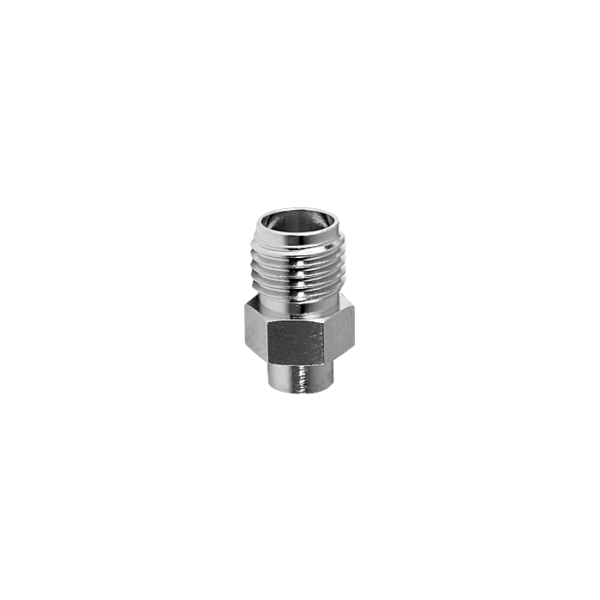

SMA Straight Jack

Availability: 7 in stock SKU: CNC7J01151A1181 Categories: , Tag: Brand:
Add to wishlist
Compare products

Description

Assembly: C27
Cable group; cable: G10 (UT-141)
Finish: Gold
Return Loss: typ.: 2 GHz: -40 dB; 6 GHz: -37 dB; 11 GHz: -33 dB; 18 GHz: -25 dB
G10: EZ 141, 1673A, RG-402/U, SUCOFORM 141, UT-141, Flexiform 402

Additional information

Weight 0.02 kg
Dimensions 12 × 10 × 2 cm
