SMA Plug
J01150A0121

SMA Plug Solder UT85 RG405

SMA Plug

SMA Plug Solder UT85 RG405

Out of stock
0 out of 5

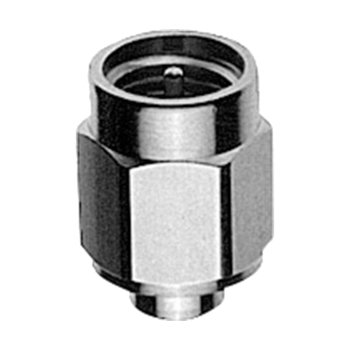

SMA Straight Plug G11 (UT-85) with inner conductor IP 68

Availability: Out of stock SKU: CNC7J01150A0121 Categories: , Tag: Brand:
Compare products
Add to wishlist
Compare products

Description

Remarks: with inner conductor IP 68
Assembly: C01
Cable group; cable: G11 (UT-85)
Finish: Gold
Return Loss: typ.: 1 GHz: -31 dB; 2 GHz: -30 dB; 4 GHz: -30 dB; 6 GHz: -30 dB
G11: RG-405/U, SUCOFORM 86, UT-85, 1671A, EZ 86, Flexiform 405 NM

Additional information

Weight 0.0105 kg
Dimensions 12 × 10 × 2 cm
