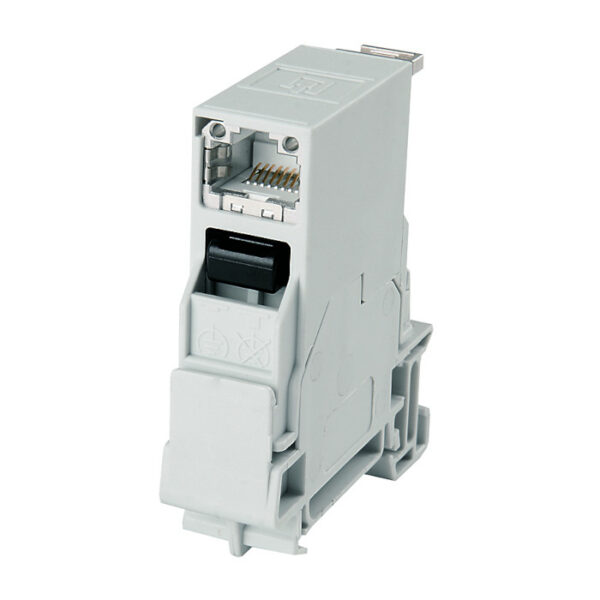

STX Mounting RAIL Outlet RJ45 Telegärtner

Description

Performance Characteristics:
Cat.6A (ISO/IEC) acc. to IEC 60603-7-51, Cat.6A (ISO/IEC) re-embedded tested acc. to IEC 60512-27-100, link certificate: Class EA (ISO/IEC) acc. to ISO/IEC 11801, 10 Gigabit-Ethernet compliant (IEEE 802.3an), overbending protection: ≥750 mating cycles with RJ45/RJ11/RJ12 plugs, suitable for PoE+ acc. to IEEE 802.3at, suitable for switching programs from several manufacturers with design capable faceplate AMJ-S Up/0 flex, integrated strain relief for cable O.D. to 9 mm, universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm, universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm,

AMJ-S DD: with integrated protection against damage to the contacts by automatic disconnection of the plug connection
Remarks: tool-free connectivity, suitable for RJ45/11/12 plugs, mounting rail TH35
Type: incl. RJ45 jack B Cat.6A (ISO/IEC) T568B
Colour: light Grey
Short name: STX mounting rail outlet
