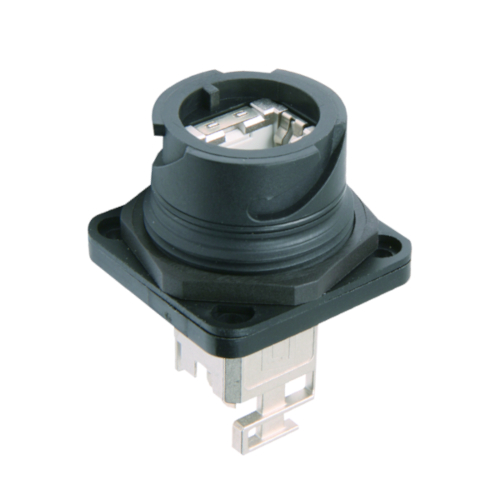

Telegärtner STX V1 Bulkhead RJ45 Cat6A

RJ45 Female Bulkhead

Telegärtner STX V1 Bulkhead RJ45 Cat6A

In stock
0 out of 5

STX V1 Bulkhead Set RJ45 Module Cat.6A(IEC)

Availability: 19 in stock SKU: CDV7J80020A0002 Categories: , Brand:
Compare products Compare products


Performance Characteristics:
storage of cables with diameter 5…10 mm, simple mounting of bulkheads through a central screwed gland or four screws, NBR aiguilette at the protection cap, bay for marking labels, with bend protection to prevent cables from being excessively bent, rugged zinc diecast or plastic housing, protection class IP67, Variant 1 acc. to IEC 61076-3-106, pre-assembled plugs and set products for simple assembly, available with RJ45 Cat.6A (ISO/IEC), Cat.6 Class EA (ISO/IEC), USB or FO insert

Description: STX V1 bulkhead set
insert: RJ45 Modul A Cat.6A (ISO/IEC)
Housing: plastic

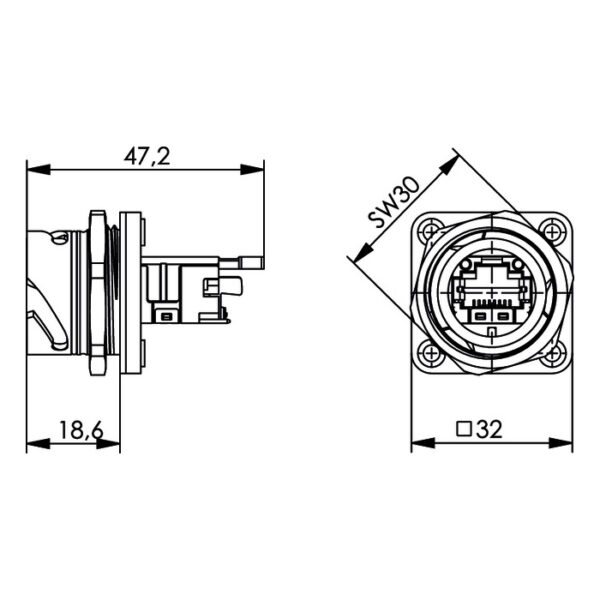

Mount. dim.: Z124; Z125

Additional information

Weight 0.00415 kg
Dimensions 12 × 14 × 15 cm
