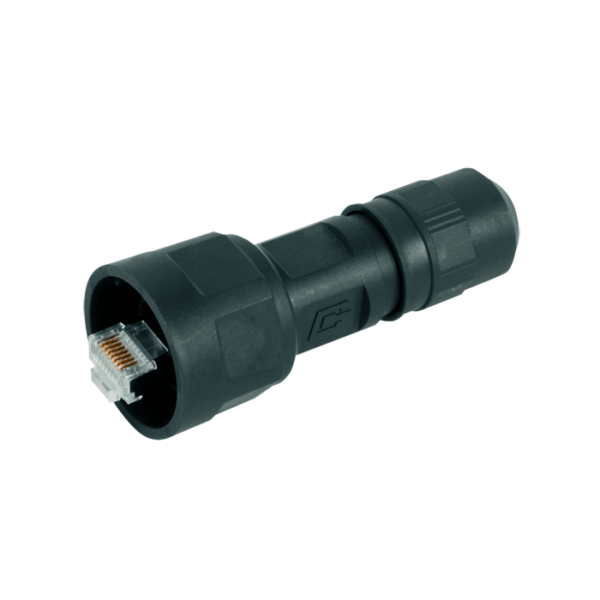

Telegärtner STX V1 Plug Set RJ45 Cat6A

RJ45 Male

Telegärtner STX V1 Plug Set RJ45 Cat6A

In stock
0 out of 5

STX V1 RJ45 Plug Set AWG24-27 Cat.6A(IEC) Plastic

Availability: 16 in stock SKU: CDV7J80026A0009 Categories: , Brand:
Compare products Compare products


Performance Characteristics:
storage of cables with diameter 5…10 mm, simple mounting of bulkheads through a central screwed gland or four screws, NBR aiguilette at the protection cap, bay for marking labels, with bend protection to prevent cables from being excessively bent, rugged zinc diecast or plastic housing, protection class IP67, Variant 1 acc. to IEC 61076-3-106, pre-assembled plugs and set products for simple assembly, available with RJ45 Cat.6A (ISO/IEC), Cat.6 Class EA (ISO/IEC), USB or FO insert

Remarks: without bend protection
Description: STX V1 RJ45 plug set Cat.6A (ISO/IEC)
Housing: plastic
Solid/Stranded: AWG24-27

Additional information

Weight 0.003885 kg
Dimensions 12 × 14 × 15 cm
Part Number
