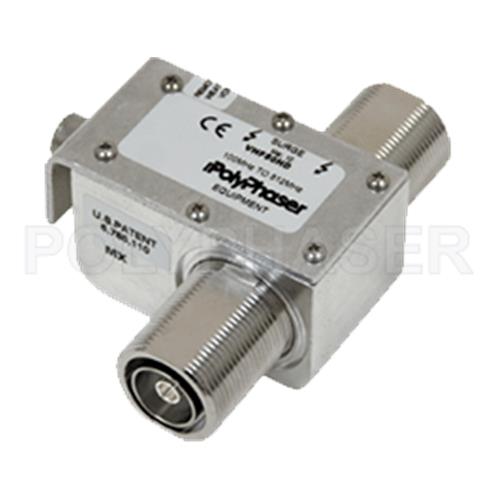

Surge Protector DIN7/16 Jack-Jack DC Block 100-512MHz

Description

7/16 F/F Coaxial RF Surge Protector, 100MHz – 512MHz, DC Block, 750W, IP67, .5uJ, 20kA, Filter, Bracket Down, Hole Mount

VHF50HD

Coaxial RF Surge Protection HF Series DC block filter design provides for the ultimate in equipment protection producing the industry lowest let-through voltage and output energy. Designed to protect multiple or high power single RF transmitter applications where dc is not required on the coaxial cable.

Features:
• High surge current capability with filter design
• Low let-through voltage and throughput energy
• No dc continuity between centre pins
• Weatherized housing
• Insertion loss 0.1 dB
• High powered public safety, TETRA and UHF/VHF radio application
• Standard N, 7/16 DIN Connectors
