Surge Protector N Plug-Jack Bulkhead 1-2 GHz 5 W
R5,911.00 incl VAT
Surge Protector N Plug-Jack Bulkhead 1-2 GHz 5 W
LP-GPX-05-N SeriesL1, L2 & L3 GPS Protector
• Bidirectional Filter Based Design- Outstanding IL/RL Characteristics- DC Blocked RF path for Superior Performance
• Solid State DC Path Protection Circuit
• Fully Weatherized Housing
- Description
- Additional information
Description

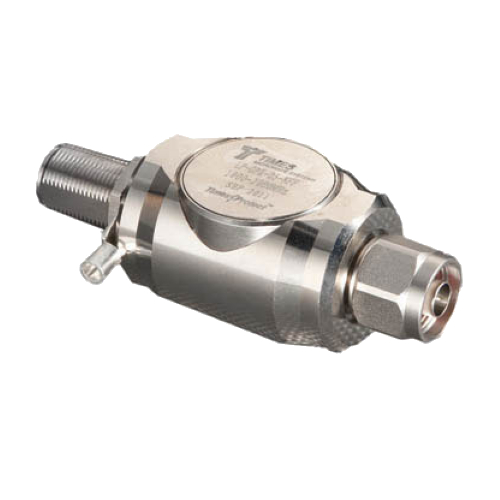

Surge Protector N Plug-Jack Bulkhead 1-2 GHz 5 W
LP-GPX-05-NFM
PROT N PLG-JCK BH 1-2 GHZ 5W
Lightning and Surge Protection for The 21st Century™
The LP-GPX-05-N high-performance series is an exceptional DC pass design for the protection of GPS receivers requiring up to 5Vdc power to be supplied on the centre pin. While the RF path is DC blocked, the biased DC Voltage protection circuit uses Solid State protection technology to provide unsurpassed surge performance. The LPGPX-05-N series offers outstanding Insertion Loss and Return Loss characteristics over the 1000-2000MHz band, making it suitable for the protection of commercial and military GPS, as well as other applications in this band. Unlike competitive protectors, the White Bronze plated construction of the LP-GPX-05-N series eliminates potential galvanic corrosion issues and provides long life in hostile environments. The fully weatherized housing is sealed to IP65 allowing for outdoor as well as indoor installation.
Additional information
| Dimensions | 10 × 4 × 4 cm |
|---|---|
| Part Number | LP-GPX-05-NFM |
| Frequency |
