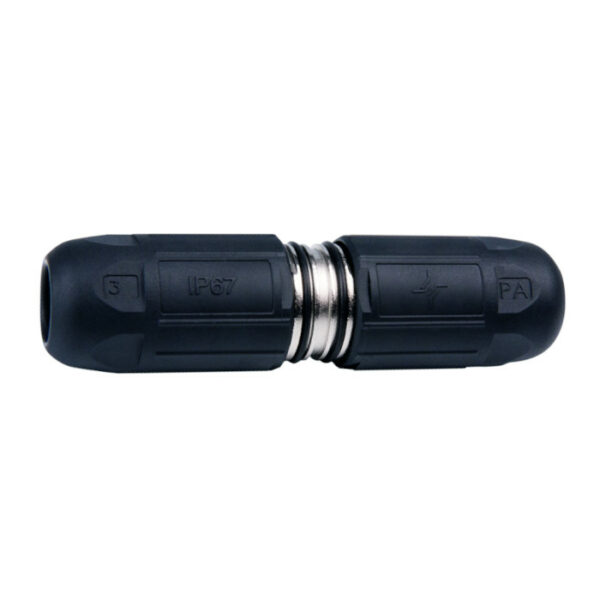

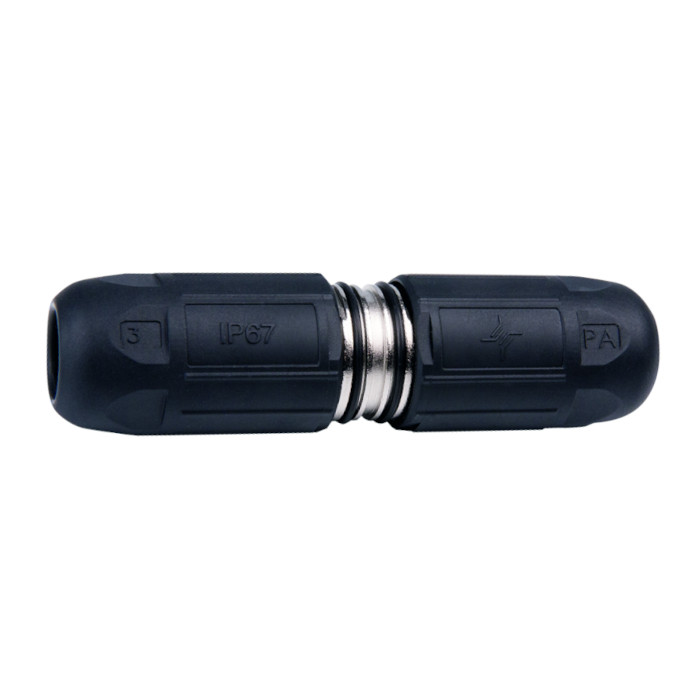

Telegärtner VM-Pro 8-8 Class FA IP67

Description

Performance characteristics of the VM-Pro 8-8 Class FA IP67, Connection Module Pro:
Cable diameter: 5.5 – 9.0 mm, electrical scoop-proof, Class FA (ISO/IEC) (1000 MHz), real-time re-embedded, suitable for 100 / 250 / 500 / 1000 MHz installation and patch cords, electrical scoop-proof, connection via IDC termination, isolated construction, the connection of 4-pair shielded/unshielded installation and patch cords from AWG 27-22, reconnectable up to 4 times, EMC tested acc. to DIN EN 61000-6-1 and DIN EN 61000-6-2, Temperature range: -40° C to 70° C, reconnectable up to 4 times

Remarks: AWG27-22
Description: VM-Pro 8-8 Class FA (ISO/IEC) IP67
Colour: Black

Training video: Assembly VM-Pro 8-8 Class FA IP67, Connection Module Pro

Order no.: J80060A0000
