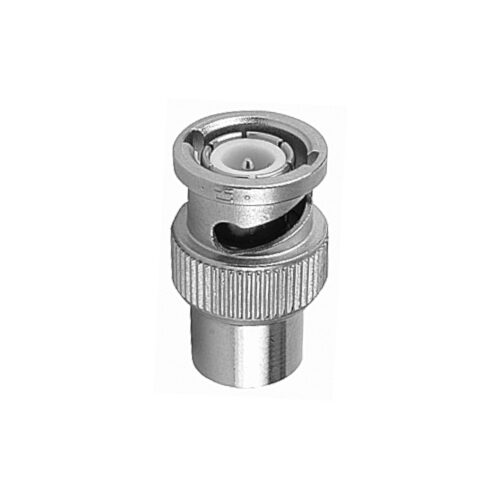

Termination BNC Plug 4 GHz 1W

BNC Termination Load (m) 50 OHM

Termination BNC Plug 4 GHz 1W

R1,179.90 incl VAT

Out of stock
0 out of 5

R1,179.90 incl VAT

BNC Termination Load (m) 50 Ohm

Availability: Out of stock SKU: CNC7J01006A0020 Categories: , , Brand:
Compare products Compare products


BNC Plug Termination Load 50 Ohm

Termination loads are connected as a load to an open signal output or an RF line in order to avoid reflection. They are available with an impedance of 50 Ohms. The performance spectrum of the termination loads varies between 1 W and 625 W up to maximum frequencies of 18 GHz. Termination loads are used for example on open ports on transmitters as well as in the calibration of RF test equipment.

Impedance: 50 Ohm
Type: m
Max. Frequency: 4 GHz
Max. Power: 1 W
Return Loss: typ.: 1 GHz: -40 dB; 2 GHz: -32 dB; 4 GHz: -26 dB

100023617 >
( Old item number J01006A0020)

Additional information

Weight 0.01465 kg
Dimensions 12 × 10 × 2 cm
