TERM N Plug 18 GHz 2W

N Attenuators

TERM N Plug 18 GHz 2W

R3,415.50 incl VAT

In stock
0 out of 5

R3,415.50 incl VAT

N Termination Load with chain (m) 2W 50 OHM

Availability: 7 in stock SKU: CNC7J01026A0010 Categories: , , Brand:
Compare products Compare products

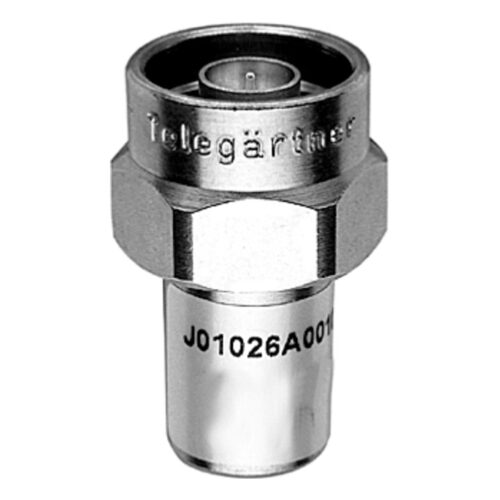

N Plug Termination Load 2W 50 Ohm

Termination loads are connected as a load to an open signal output or an RF line in order to avoid reflection. They are available with an impedance of 50 Ohms. The performance spectrum of the termination loads varies between 1 W and 625 W up to maximum frequencies of 18 GHz. Termination loads are used for example on open ports on transmitters as well as in the calibration of RF test equipment.

Type: m
Max. Frequency: 18 GHz
Max. Power: 2 W
Return Loss: typ.: 1 GHz: -40 dB; 6 GHz: -30 dB; 9 GHz: -28 dB; 18 GHz: -20 dB

100024180 >
( Old item number J01026A0010)

Additional information

Weight 0.0483 kg
Dimensions 12 × 10 × 3.6 cm
