Termination N Plug 6 GHz 1W

N Attenuators

Termination N Plug 6 GHz 1W

In stock
0 out of 5

N Termination Load (m) 1W 50 Ohm

Availability: 2 in stock SKU: CNC7J01026A0012 Categories: , , Brand:
Compare products Compare products

Description

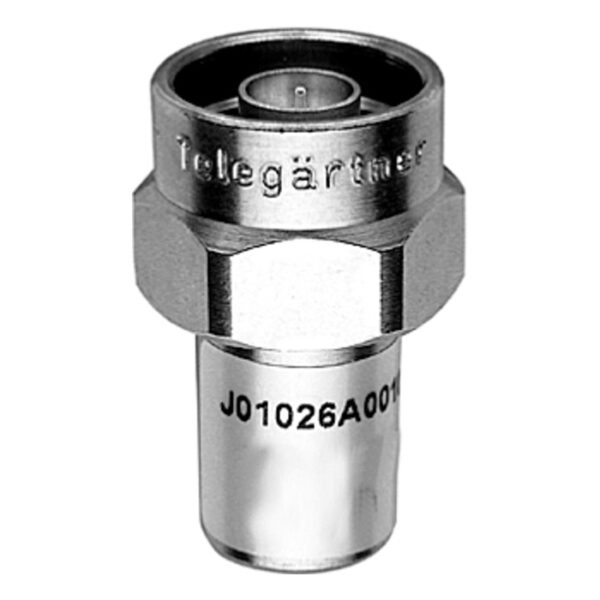

N Plug Termination Load 1W 50 Ohm

Termination loads are connected as a load to an open signal output or an RF line in order to avoid reflection. They are available with an impedance of 50 Ohms. The performance spectrum of the termination loads varies between 1 W and 625 W up to maximum frequencies of 18 GHz. Termination loads are used for example on open ports on transmitters as well as in the calibration of RF test equipment.

Type: m
Max. Frequency: 6 GHz
Max. Power: 1 W
Return Loss: typ.: 1 GHz: -47 dB; 4 GHz: -26 dB; 6 GHz: -33 dB

100024165 >
( Old item number J01026A0012)

Additional information

Weight 0.0455 kg
Dimensions 12 × 10 × 3.6 cm
Part Number

J01026A0012
