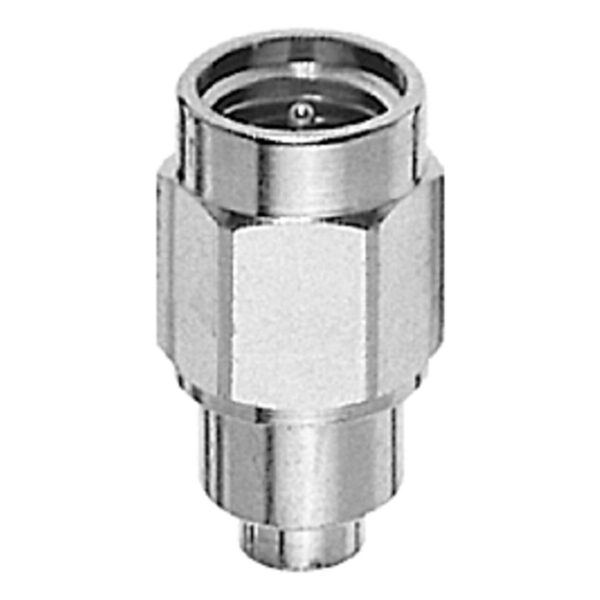

Termination Load SMA Plug 18 GHz 1 W

Termination Load SMA Plug 18 GHz 1 W

R782.00 incl VAT

In stock
0 out of 5

R782.00 incl VAT

SMA Termination Load (m) 1W 18GHz 50 OHM, Au

Availability: 14 in stock SKU: CNC7J01152B0011 Categories: , Brand:
Compare products Compare products

Description

Termination loads are connected as a load to an open signal output or an RF line in order to avoid reflection. They are available with an impedance of 50 Ohms. The performance spectrum of the termination loads varies between 1 W and 625 W up to maximum frequencies of 18 GHz. Termination loads are used for example on open ports on transmitters as well as in the calibration of RF test equipment.

Type: m
Max. Frequency: 18 GHz
Max. Power: 1 W
Finish: Gold
Return Loss: typ.: 1 GHz: -44 dB; 4 GHz: -34 dB; 10 GHz: -24 dB; 18 GHz: -19 dB

Additional information

Weight 0.0045 kg
Dimensions 12 × 10 × 2 cm
