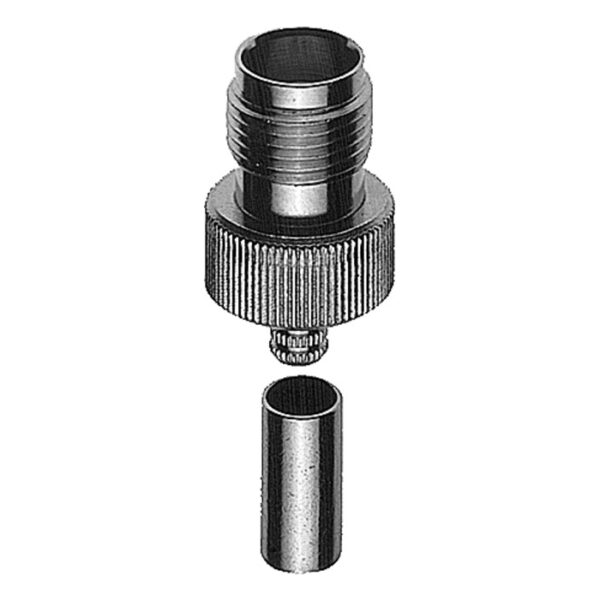

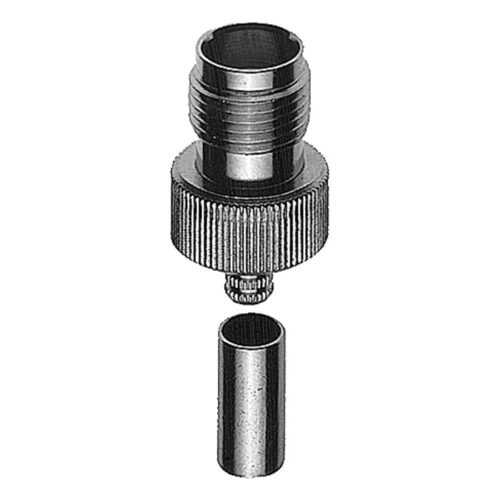

TNC Jack Crimp LMR400

TNC Jack Crimp LMR400

In stock
0 out of 5

TNC Cable Jack, crimp, G37 (9913 Belden), G55 (2.7/7.25 Flex), SD/CR

Availability: 22 in stock SKU: CNC7J01011A0055 Categories: , Brand:
Compare products Compare products

Description

Remarks: crimp/crimp
Assembly: A3326
Z: 50 Ω

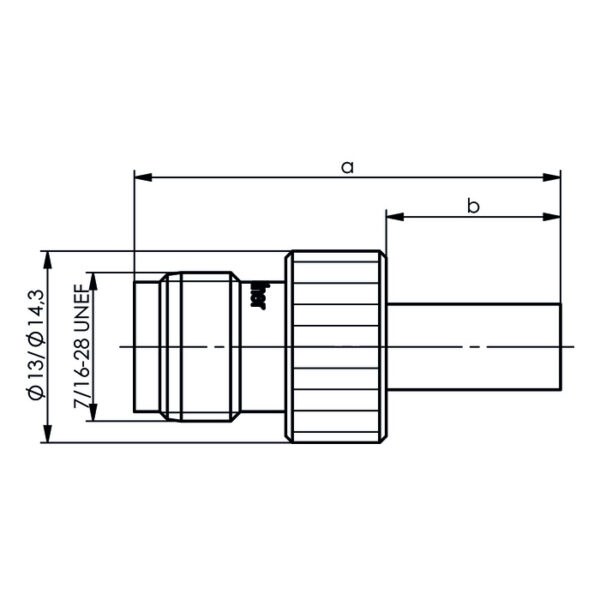

Dimensions: a=38, b=14.5
Crimp die: N01003A0030
Cable group; cable: G37 (2.7/7.25); G55 (2.7/7.25 Flex)
G37: 2.7/7.3 AF, 2.7/7.3 CF, 213CRT7 LOW LOSS, 7810A, 9913, 9914, C2FCP, C2FP, CNT-400, EC 400, HPF 400, LMR-400, MRC 400 AFB, TZC 500 32, WBC-400, WCX400, SPEEDFOAM 400 HFJ, RF 400 TT
G55: 9913F

Additional information

Weight 0.11675 kg
Dimensions 12 × 10 × 2 cm
