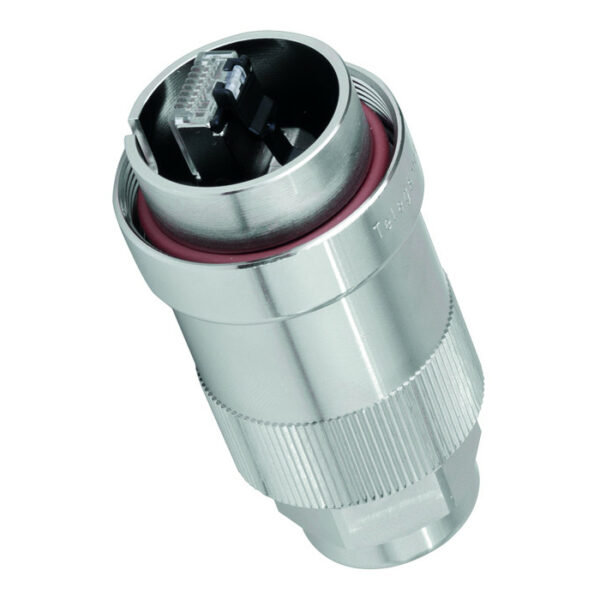

TOC Plug Set IP68 MFP8 T568B Cat.6A

Description

Performance Characteristics:
suitable for 10 Gigabit Ethernet acc. to IEEE 802.3an, suitable for PoE+ acc. to IEEE 802.3at, 360° shielding, temperature range: -40° to +85°C, protection class IP68 acc. to IEC 60529, protection cap with protection class IP68, RJ45 plug MFP8 Cat.6A (ISO/IEC) acc. to IEC 60603-7-51 (500 MHz), RJ45 plug MFP8 Cat.6A (ISO/IEC) UL listed (E244889), Cu-conductor: solid 0.41 – 0.64 mm (AWG24/1 – AWG22/1); stranded 0.46 – 0.76 mm (AWG27/7 – AWG22/7), mounting on DIN rail TH35 by means of adaptors (J06000A0056), cable outer diameter: 4 – 9.5 mm

Remarks: brass, nickel-plated
Description: TOC plug set IP68
Description: MFP8 T568B Cat.6A (ISO/IEC); AWG22-27
