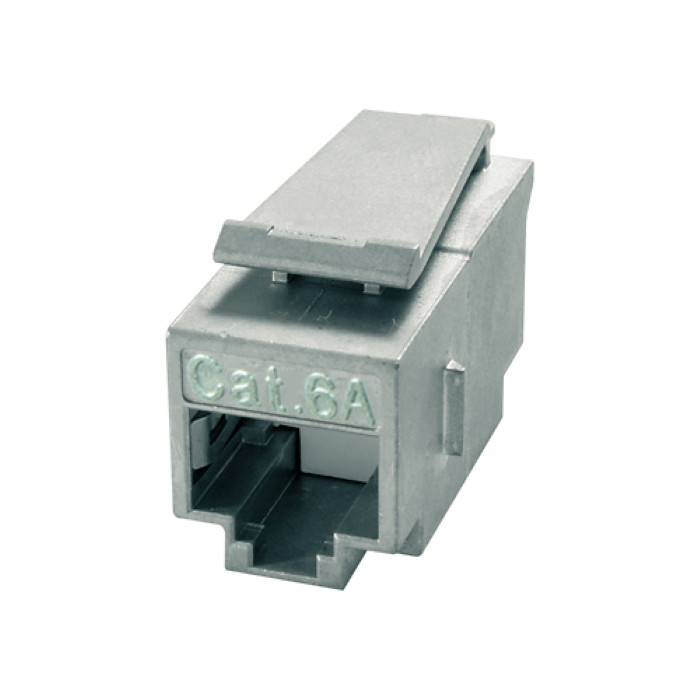

AMJ Coupler K Cat.6, f-f

Availability: 113 in stock SKU: CDV7J00029A0061 Categories: , , Brand:
Compare products

Description

Performance Characteristics:
Cat.6A (ISO/IEC) acc. to IEC 60603-7-51, Cat.6A (ISO/IEC) re-embedded tested acc. to IEC 60512-27-100, link certificate: Class EA (ISO/IEC) acc. to ISO/IEC 11801, 10 Gigabit-Ethernet compliant (IEEE 802.3an), overbending protection: ≥750 mating cycles with RJ45/RJ11/RJ12 plugs, suitable for PoE+ acc. to IEEE 802.3at, suitable for switching programs from several manufacturers with design capable faceplate AMJ-S Up/0 flex, integrated strain relief for cable O.D. to 9 mm, universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm, universal, world-wide available installation dimension for mounting cut-outs: 19.3 x 14.7 mm, AMJ-S DD: with integrated protection against damage to the contacts by automatic disconnection of the plug connection

Remarks: suitable for RJ45/11/12 plugs
Description: suitable for Class EA (ISO/IEC) Channel, 10 Gigabit Ethernet
Short name: AMJ Coupler K Cat.6A, f-f
