Venus Multiband Mobile Antenna
VENUS Antennas are designed for use on multiple frequency bands.
Each frequency band boasts with it’s own unique colour-coded cable.
It can be used with or without a ground plane.
Roof mounting is recommended.
Define your own unique frequency combination, termination and coax cable length when placing your order.
Ingress Protection rating : IP66
DUST :
– total protection against dust
– no ingress;
FLUID :
– protected against strong jets of water
from all directions
– limited ingress permitted.
One (1) or a combination of the following frequencies can be included in the antenna: GSM / GPS / Iridium
- Description
- Additional information
Description

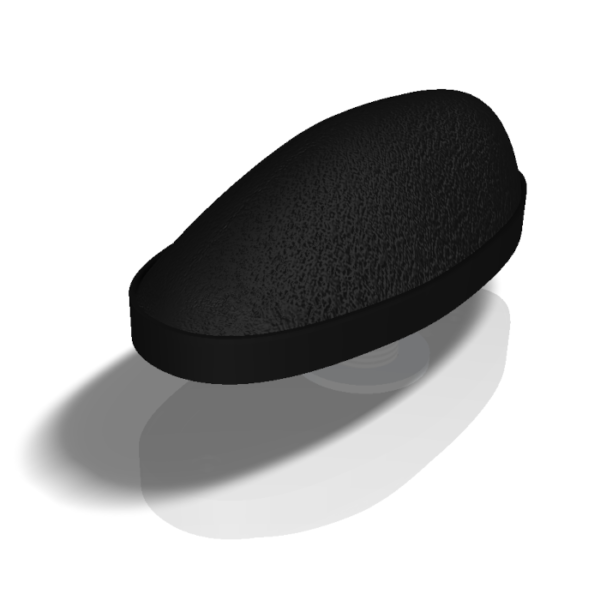

The Venus Multiband Mobile Antenna is designed for applications where multiple combinations of frequency bands are used. The antenna has a separate colour-coded cable for each frequency band. It is recommended that rear roof mounting is used on a vehicle for the antenna. The antenna can be mounted without a ground plane.
Choose a unique frequency combination, terminations, and coaxial cable length when placing your order. The coaxial cables are colour coded as follows:
- WiFi = Red
- Iridium = White
- GPS = Blue
- Cellular = Yellow (or if it has a Fakra connector, then Bourdeaux-Violet)
- Other colour codes can be applied depending on the requirement.
The antenna has total protection against dust and is protected against strong jets of water from all directions.
The Venus Multiband Mobile Antenna can work on the GSM, GPS, Iridium, and 3G bands. It has unity gain relative to a quarter wavelength resonator when used in the GSM, Iridium, and 3G bands and 26 dBi nominal gain when used in the GPS band.
The antenna has specifications such as a characteristic impedance of 50 Ohm and a rated power of 10 W in the GSM, Iridium, and 3G bands. It can withstand wind velocities of up to 220 km/h. The amplifier for the GPS band needs to be powered by a 3 – 5 V DC power supply.

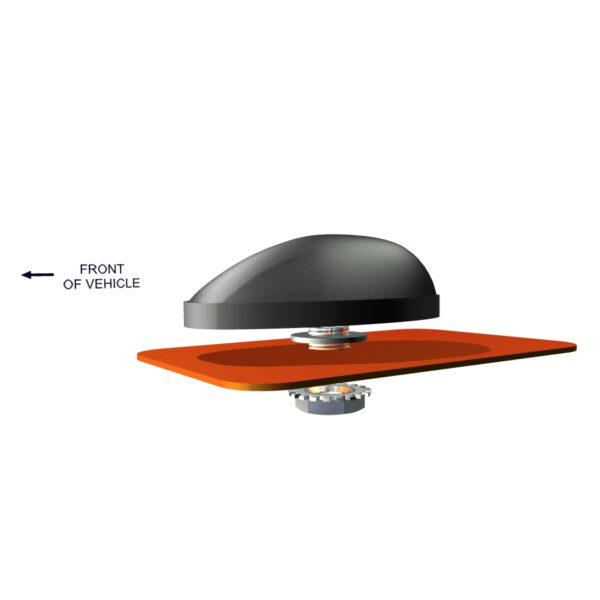

The antenna can be mounted on a vehicle using a 16 mm to 18 mm hole size. When the antenna is mounted on a vehicle, it is recommended to remove it before using equipment such as automatic car wash equipment to avoid damage to the antenna.
Additional information
| Part Number | Talk to us |
|---|---|
| Band Selector | |
| Additional Band Option | Cell 2450 MHz, Cell 3G/LTE, Cell GSM 1800, Cell GSM 900, Track GPS, Track Iridium |
| Frequency | 1575 — 1626 MHz, 1710 — 2170 MHz, 2300 — 2700 MHz, 698 — 960 MHz |
| Nominal Gain | |
| Track GPS connector | Fakra Blue, MCX(m)cr, R-TNC(m)cr, SMA(m), SMB(f)cr |
