Very Low Profile Covert Antenna
VLP Antennas work on Cellular and Iridium frequency bands.
Define your own unique frequency combination, termination and coax cable length when ordering.
- Description
- Additional information
Description

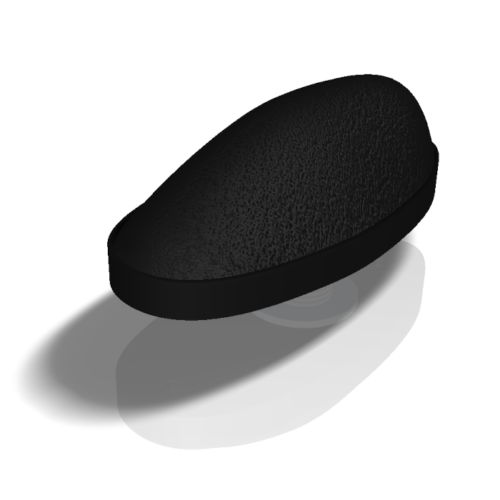

The Very Low Profile Covert Antenna is designed to draw little attention. When ordering, choose your unique frequency combination, termination, and coaxial cable length.
The antenna covers the GSM900 band of 870 MHz to 960 MHz, the GSM1800 of 1710 MHz to 1880 MHz, the Iridium band of 1616 MHz to 1626 MHz, and the 3G band of 1710 MHz to 2170 MHz.
The Very Low Profile Covert Antenna has the following specifications: all the bands that the antenna covers have a nominal gain of 2 dBi and a VSWR of < 2.5:1. It has a rated power of 10 W and a characteristic impedance of 50 Ohm for all the bands that it covers. The antenna can radiate all its power in equal directions perpendicular to its axis.
It is mounted with double-sided tape. It has a temperature range between -20 degrees Celsius and 60 degrees Celsius. The antenna is available in color black or white.
Additional information
Part Number | Talk to us |
---|---|
Band Selector | |
Additional Band Option | |
Frequency | |
Nominal Gain |
