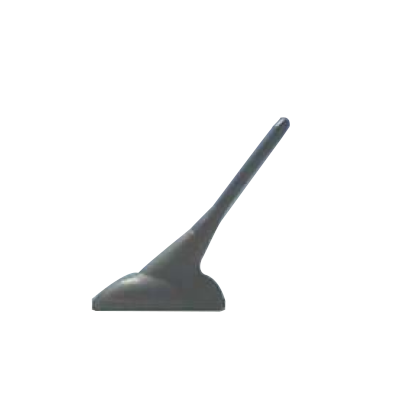

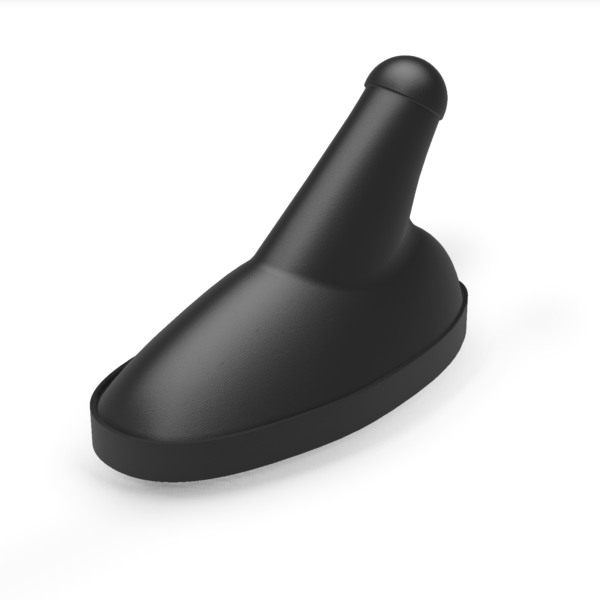

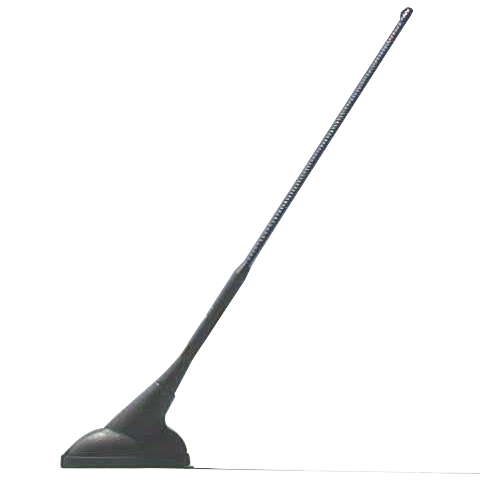

Wasp Multiband Mobile Antenna

Description

The Wasp Multiband Mobile Antenna is designed for applications where multiple combinations of frequency bands are used. The antenna has a separate cable for each frequency band. It is recommended that rear roof mounting is used on a vehicle for the antenna.

The antenna is tunable over a frequency range that is defined by trimming the whip. Your own unique frequency combination, termination, and coaxial cable length can be chosen when placing your order.

The Wasp Multiband Mobile Antenna can work on the VHF, UHF, GSM, and GPS bands. The antenna has unity gain relative to a quarter wavelength resonator when used in the VHF, UHF, and GSM bands and 26 dBi nominal gain when used in the GPS band.

The antenna radiates all of its power in equal directions perpendicular to its axis. The electric field of the antenna is vertical while the magnetic field is horizontal. The antenna can withstand wind velocities of up to 220 km/h. The amplifier for the GPS band needs to be powered by a 3 – 5 V DC power supply.

The antenna has specifications such as a characteristic impedance of 50 Ohm and a rated power of 30 W in the VHF and UHF bands and 10 W in the GSM band. It is only available in the color black and weighs less than half a kilogram.

The antenna can be mounted on a vehicle using a 16 mm to 18 mm hole size. When the antenna is mounted on a vehicle, it is recommended to remove it before using equipment such as automatic car wash equipment to avoid damage to the antenna.
