WM7 Extra Heavy-Duty – Adjustable

Description

The WM7 Extra Heavy-Duty (HD) Adjustable Wall Mount Clamp Assembly (ASSY) is a robust flush mount designed to accommodate various pipe sizes. It is ideal for mounting lightweight masts, antenna support pipes, and similar structures.

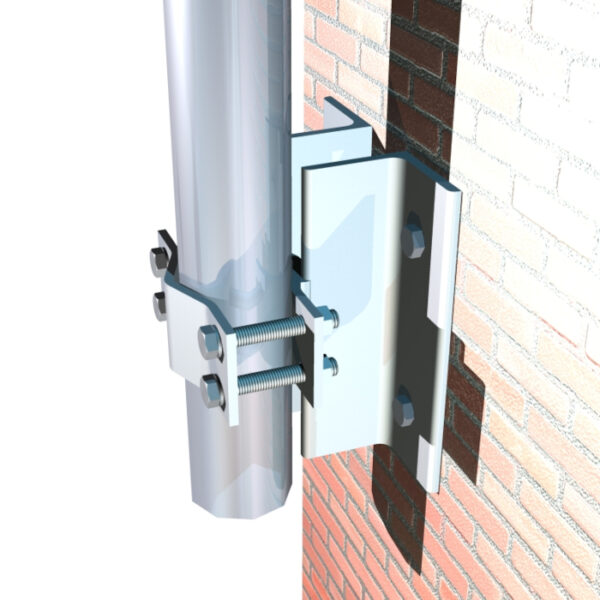

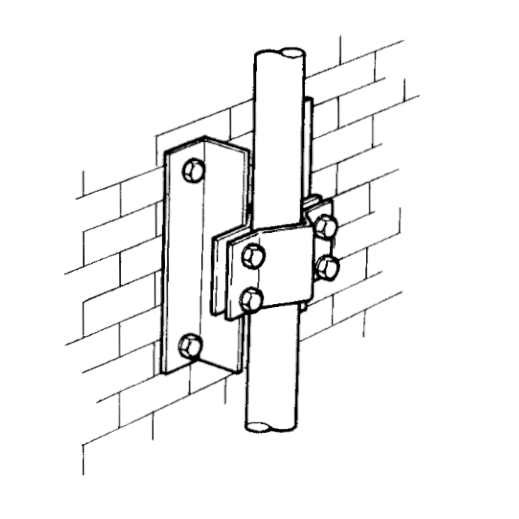

This extra HD wall mount offset clamp will allow you to mount tubes/circular hollow sections (CHS) or rods/round bars (RB) with diameters between 34 mm and 77 mm using a CO99S adjustable prebent-to-fit splice clamp with double bolts. The offset of item CLWM7 is 70 mm.

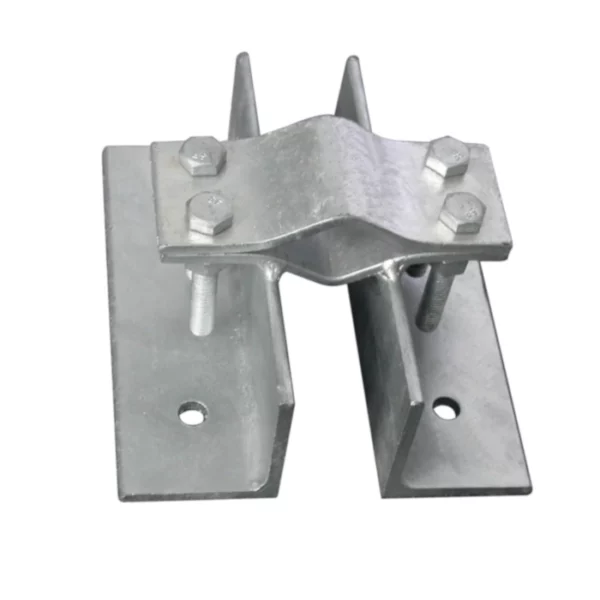

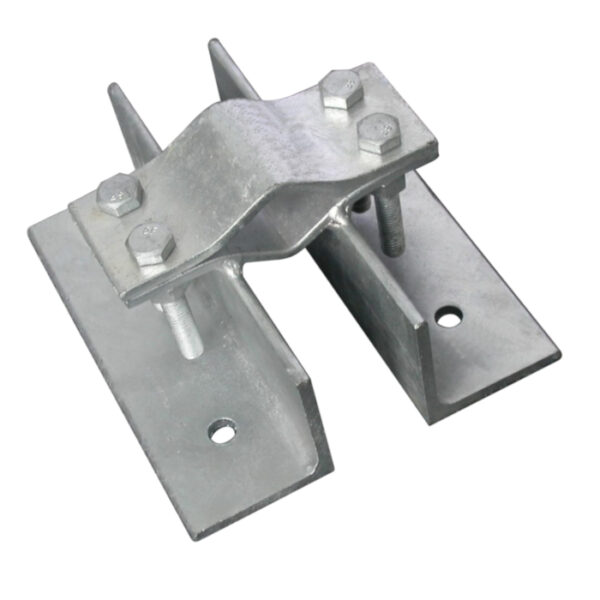

The WM7 Extra Heavy-Duty – Adjustable welded ASSY comes with a bent-to-suit splice plate, 4 x set screws, nuts and washers to clamp a pipe. It is constructed from commercial-grade mild steel and hot-dipped galvanised (HDG). Fasteners are made from grade 8.8 high tensile steel.

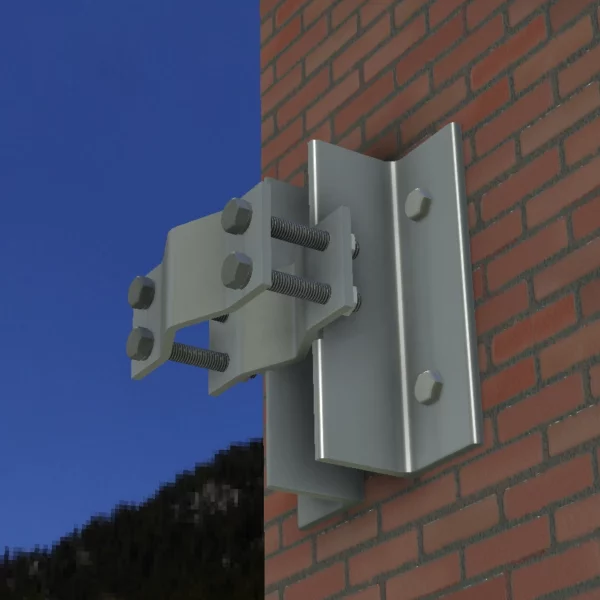

Please note that additional items are required to attach the ASSY to a wall or flat surface. The four rawl bolts necessary for this installation are not included. The hole diameters for the rawl bolts are 14 mm, spaced 120 mm apart on the horizontal (X-axis) and 127 mm apart on the vertical (Y-axis) plane.

Finally, the required CHS or RB must be purchased separately.
