XHD Offset Brackets

Description

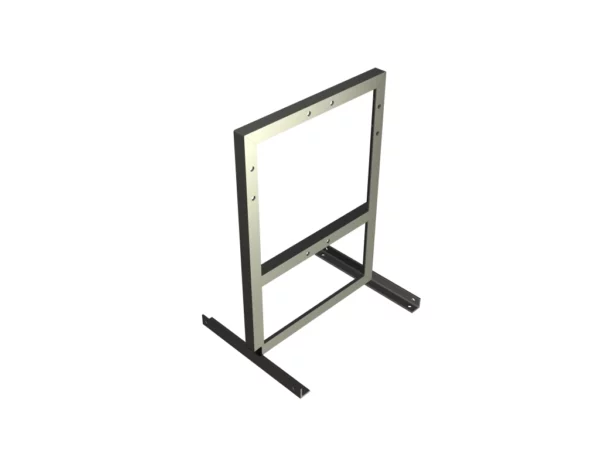

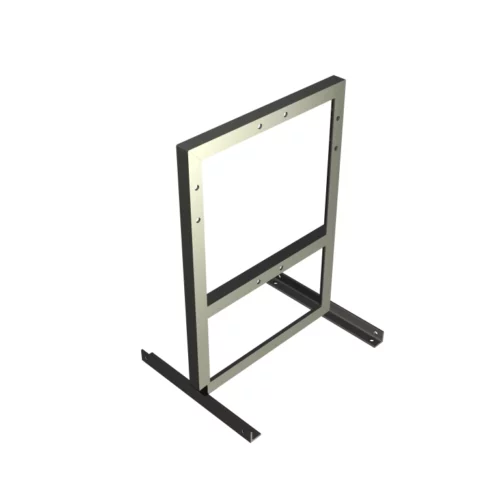

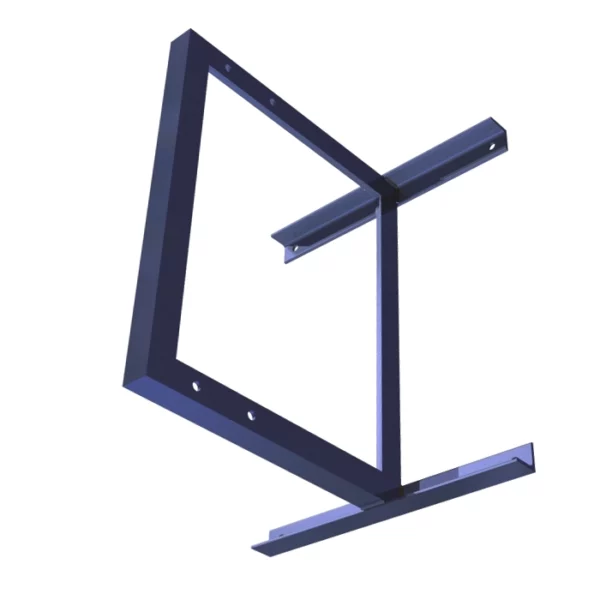

Extra Heavy-Duty (XHD) Offset Brackets

These XHD offset brackets are designed to mount tubes securely, circular hollow sections (CHS), or rods/round bars (RB) with diameters ranging from 34 mm to 77 mm. Fix the CHS/RB to the bracket with the provided PC3 splice plates, set screws, nuts and bolts, allowing for an offset.

Available Offset Options:

• 150 mm (WM15)
• 300 mm (WM30)
• 450 mm (WM45)
• 600 mm (WM60)
• 1,000 mm (WM100)

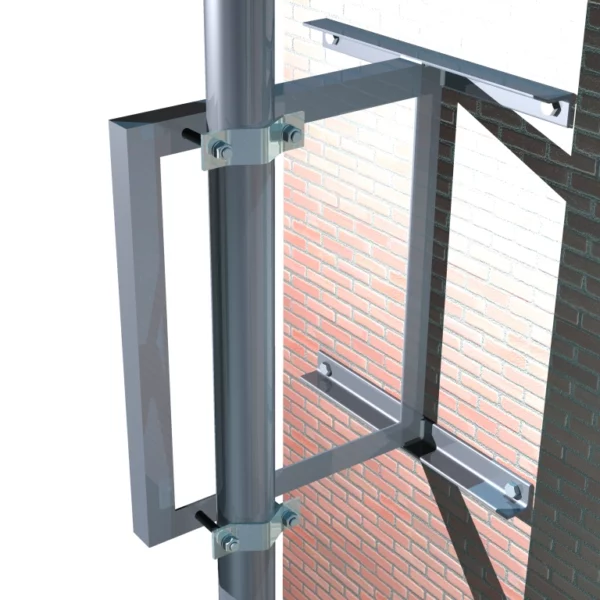

It is ideal for mounting lightweight masts, antenna support pipes, and similar structures to achieve a stable attachment to a wall or flat surface.

Manufacturers construct them from commercial-grade mild steel and hot-dip galvanized (HDG) for durability. They use grade 8.8 high-tensile steel for the fasteners.

You will need additional items to secure the bracket to a wall. This installation does not include the required rawl bolts. They must fit into 4 x 13 mm diameter mounting holes spaced 400 mm apart on the horizontal (X-axis) and 510 mm apart on the vertical (Y-axis) plane.

Finally, to complete the installation, you must purchase the required CHS or RB separately.

Webb Industries engineers Offset Brackets with precision and durability, providing reliable mounting solutions for telecommunications, electrical, and industrial applications. These brackets offer optimal spacing and support, ensuring secure installations without compromising structural integrity.

Key Features:
Robust Construction – Manufactured from high-quality galvanised steel or aluminium for strength and corrosion resistance.
Optimised Offset Design – Allows for precise positioning of antennas, cables, and other telecom equipment.
Versatile Applications – Ideal for mounting signal boosters, radio equipment, and industrial hardware.
Easy Installation – Pre-drilled holes for quick and hassle-free setup.

Webb’s Offset Brackets balance strength and flexibility, ensuring seamless integration into your infrastructure.
